Ss 90* Din Union Complete

Description & Features

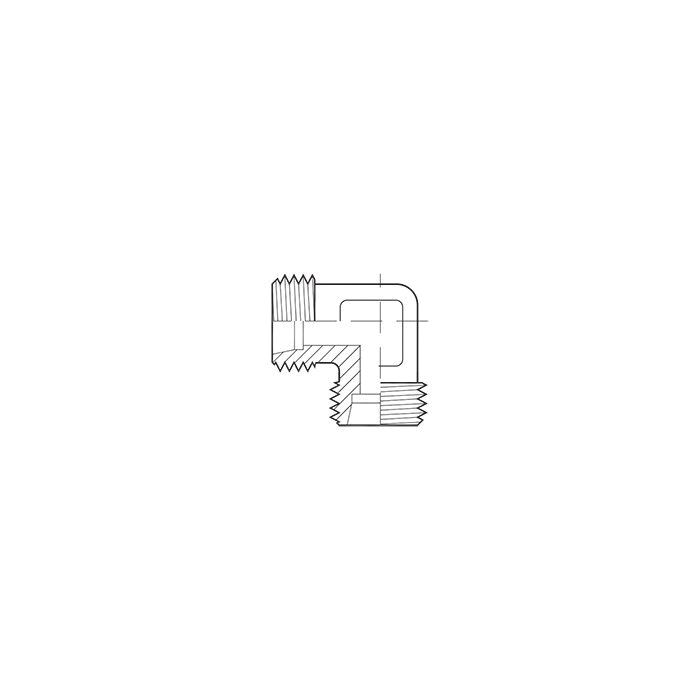

Constructed from stainless steel, this 90° elbow union is designed for DIN tube connections in hydraulic systems requiring corrosion-resistant fittings. Both sides feature M26 x 1.5 male DIN tube ends at the L18 size, making this a symmetrical union suitable for joining two lines at a right angle without transitioning between connection types or sizes.

The Ss 90° Din Union Complete from Adaptall measures 31mm along the primary axis (L1) and 23.5mm on the secondary (L2), with a 24mm wrench flat for installation. The stainless steel body suits applications where fluid compatibility or environmental exposure rules out carbon steel alternatives.

SKU: SS5055L-18C

Supplier Part Number (MPN): SS5055L-18C

Specifications

Brand adapt-all	Additional Information Light-Duty	Connection Size 1 18 mm	Connection Size 2 18 mm	Connection Type Metric	Connection Type 1 DIN Tube	Connection Type 2 DIN Tube	Dimension Standards DIN 2353	Dimensions 31 mm L	Fitting Type 90 deg Elbow	Hex Size 24 mm	Material Stainless Steel	Material Construction 316 Stainless Steel	Series SS5055 Series	Thread Size M26x1.5

Product Questions & Answers (2)

Question by: Harvey M on Jul 22, 2025, 12:08 PM

Will this fitting hold up if its exposed to hydraulic fluid all the time?

Answer by: Customer Support on Jul 24, 2025, 7:46 AM

Stainless steel construction makes this 90° DIN union suitable for hydraulic applications where constant fluid contact or environmental conditions rule out standard carbon steel.

Question by: Dwight M on Apr 14, 2025, 8:28 AM

trying to tie two L18 DIN tube ends together but need to turn the line 90 degrees, is this the right fitting?

Answer by: Customer Support on Apr 15, 2025, 11:13 AM

For a right angle connection without changing sizes, this union matches two DIN tube ends that are both M26 x 1.5 male at the L18 size, so it joins like to like while making a 90° turn.
