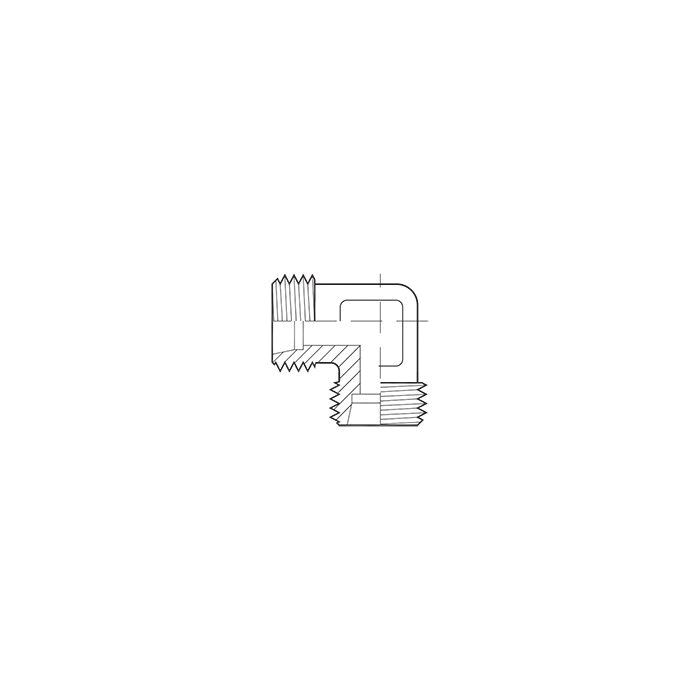

Ss 90* Din Union Complete

Description & Features

Constructed from high-grade stainless steel, this 90° elbow union is designed for robust industrial applications requiring durable and reliable connections. The Adaptall Ss 90* Din Union Complete features a precise M20 x 1.5 thread size on both ends, ensuring compatibility with DIN tube systems. Its compact design includes a 17mm wrench width, with an overall length of 29mm and a secondary length of 21.5mm, facilitating seamless integration into space-constrained assemblies.

Engineered for both side 1 and side 2 as male connections, this union supports S12-sized DIN tubes, making it a versatile component in hydraulic systems. The use of stainless steel not only enhances its corrosion resistance but also prolongs its operational lifespan in demanding environments. This product is an ideal choice for industrial settings that require precise and secure fluid transfer connections.

SKU: SS5055S-12C

Supplier Part Number (MPN): SS5055S-12C

Specifications

CH Width 17mm	L1 Length 29mm	L2 Length 21.5mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5055S-12C	Product Weight 0.32 lbs

Product Questions & Answers (1)

Question by: Brent J on Mar 4, 2026, 9:34 PM

Will this here fitting work with standard DIN tubing sizes?

Answer by: Customer Support on Mar 6, 2026, 6:41 AM

This union supports S12-sized DIN tubes, so as long as your tubing is that size, it should work just fine.
