Ss 90* Mdin X Mnpt Complete

Description & Features

Constructed from stainless steel, this 90° elbow adapter connects an M18 x 1.5 male DIN tube end (Side 1, L12 series) to a 1/4" male NPTF thread (1/4-18 NPTF), making it a practical solution for hydraulic circuits that require a right-angle transition between metric DIN and NPT fittings. The stainless steel construction suits environments where corrosion resistance is a priority.

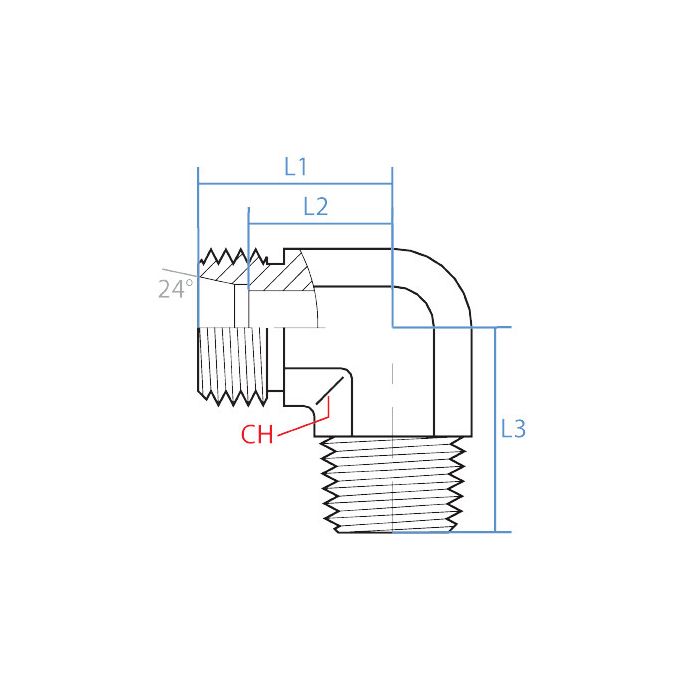

The Ss 90° Mdin X Mnpt Complete is an Adaptall fitting, with a CH width of 17mm and key dimensional measurements of 24mm (L1), 17mm (L2), and 28mm (L3). The elbow configuration helps manage routing in tight spaces where a straight adapter would not be practical.

SKU: SS5070L-12-04C

Supplier Part Number (MPN): SS5070L-12-04C

Specifications

CH Width 17mm	L1 Length 24mm	L2 Length 17mm	L3 Length 28mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5070L-12-04C	Product Weight 0.06 lbs

Product Questions & Answers (3)

Question by: Wes M on Dec 9, 2025, 7:34 AM

got a metric DIN tube end on a hydraulic line and need to tie into a 1/4" NPT port at a right angle, this fitting do that?

Answer by: Customer Support on Dec 11, 2025, 7:53 AM

Right angle from an M18 x 1.5 male DIN tube end to a 1/4-18 NPTF male thread is exactly what this one does. The 90 degree elbow lets you make that transition without having to reroute your line or force a straight adapter into a tight spot. Both sides are male, so you'll be threading into female ports on each end. Stainless steel construction, Adaptall brand, SKU SS5070L-12-04C.

Question by: Hubert H on Jul 24, 2025, 3:47 PM

Will this fitting hold up if it's used outside on some equipment?

Answer by: Customer Support on Jul 26, 2025, 6:06 AM

Because this adapter is made from stainless steel, it's a good choice for situations where you need resistance to corrosion.

Question by: Ralph P on Mar 6, 2026, 9:52 PM

got a hose end with M18 x 1.5 DIN on it and my port is 1/4-18 NPTF. is this the right elbow to tie those together?

Answer by: Customer Support on Mar 8, 2026, 6:33 AM

For a right angle adapter between those two thread styles, it matches up as M18 x 1.5 male DIN tube end on one side (L12 series) and 1/4-18 male NPTF on the other side.
