Ss Din Union Tee Complete

Description & Features

Crafted from high-quality stainless steel, the Adaptall Ss Din Union Tee Complete is designed for seamless integration into industrial hydraulic systems. Featuring a robust tee shape, this component ensures durability and reliability in demanding environments. Each of the three connection points is engineered with M16 x 1.5 threads and designed for DIN tube compatibility, making it an ideal choice for precise and secure connections.

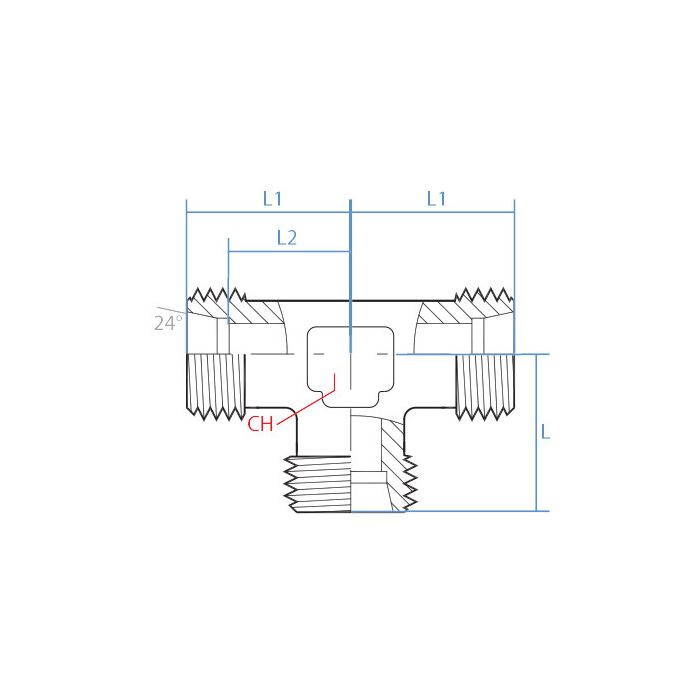

With dimensions of 22mm L1 length and 15mm L2 length, this union tee provides a compact solution without compromising on strength or performance. The 14mm wrench width facilitates easy installation and maintenance, streamlining use in complex hydraulic systems. Trust in the adaptability and resilience of this component for your industrial needs.

SKU: SS5080L-10C

Supplier Part Number (MPN): SS5080L-10C

Specifications

CH Width 14mm	L1 Length 22mm	L2 Length 15mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size L10	Side 2 Type Din Tube	Side 3 Callout M16 X 1.5	Side 3 Gender M	Side 3 Size L10	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5080L-10C	Product Weight 0.33 lbs

Product Questions & Answers (3)

Question by: Jimmy H on Feb 28, 2026, 2:55 PM

trying to tie a third DIN tube line in, are all three ends on this tee the same thread?

Answer by: Customer Support on Mar 2, 2026, 8:30 AM

All three ports match. Each connection point is a male M16 x 1.5 thread and it is set up for DIN tube on all three sides.

Question by: Eddie H on May 10, 2025, 4:48 PM

What size wrench do I need to tighten this tee fitting down good and snug?

Answer by: Customer Support on May 12, 2025, 6:48 AM

This union tee requires a 14mm wrench, making installation straightforward.

Question by: Melvin M on Aug 3, 2025, 3:03 PM

All three ports on this thing use the same thread size, or do they vary?

Answer by: Customer Support on Aug 5, 2025, 9:42 AM

All three connection points are M16 x 1.5, and all three are sized for L10 DIN tube. So no mixing and matching required, every port is identical in thread spec and sizing.
