Ss316-Din2353S Series Tube Nut

Description & Features

This Adaptall tube nut is part of the DIN 2353 S series and is constructed from stainless steel.

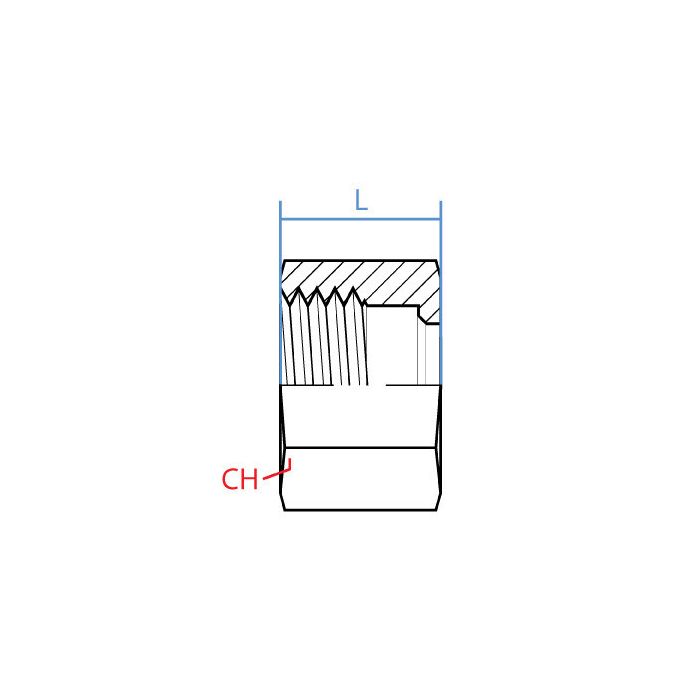

It features a M30 x 2.0 side 1 callout, is an S20 side 1 size, and has a 36mm Adaptall wrench width, with a 24.3mm Adaptall L length. The Ss316-Din2353S Series Tube Nut is a component shape and features a female side 1 gender and DIN tube side 1 type.

SKU: SS5201S-20

Supplier Part Number (MPN): SS5201S-20

Specifications

CH Width 36mm	L Length 24.3mm	Adaptall Material Stainless	Adaptall Shape Component	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size S20	Side 1 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5201S-20	Product Weight 0.25 lbs

Product Questions & Answers (2)

Question by: Billy M on Jul 24, 2025, 12:09 PM

what size wrench you need to get on this nut? trying to figure out if my standard stuff will work before I order

Answer by: Customer Support on Jul 26, 2025, 8:56 AM

You'll want a 36mm wrench to fit this one. That's the Adaptall-specified wrench width for this tube nut, so make sure you've got that size on hand before you start the job.

Question by: Tammy J on Dec 7, 2025, 2:52 PM

trying to match up a tube nut i’ve got, is this one the M30 x 2.0 female in the DIN 2353 S series?

Answer by: Customer Support on Dec 9, 2025, 6:30 AM

The key callouts on this nut are a female DIN tube connection in the DIN 2353 S series with an M30 x 2.0 thread on side 1, and it is sized as S20 on side 1.
