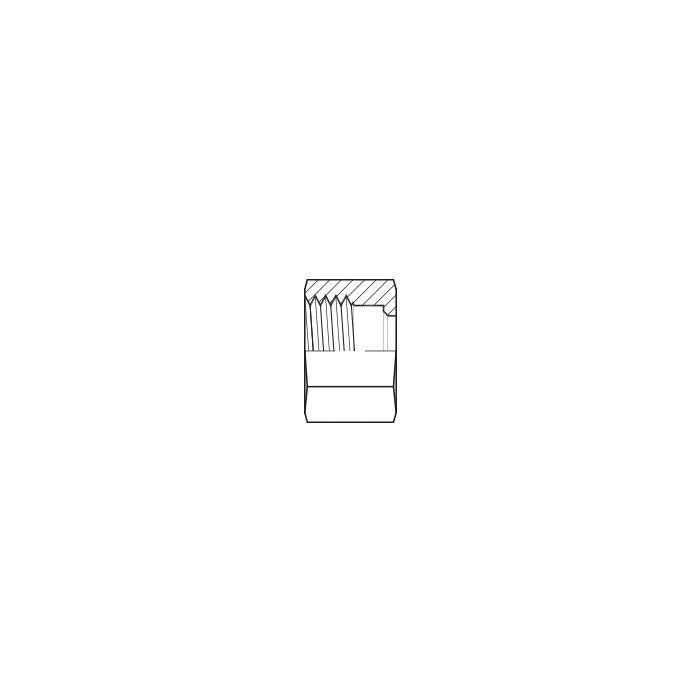

Ss316-Din2353S Series Tube Nut

Ask A Question

Description & Features

Constructed from 316 stainless steel, this DIN 2353S series tube nut is designed for use with DIN-standard compression fittings in hydraulic and fluid power systems where corrosion resistance is a priority. The female DIN tube connection on Side 1 carries an M52 x 2.0 thread and is sized for S38 tubing, making it suitable for larger-diameter line connections in demanding industrial environments.

The Ss316-Din2353S Series Tube Nut is supplied by Adaptall and measures 32.5mm in length with a 60mm across-flats width. Stainless steel construction provides reliable performance in corrosive or washdown-intensive environments where carbon steel alternatives would be unsuitable.

SKU: SS5201S-38

Supplier Part Number (MPN): SS5201S-38

Specifications

Brand
adapt-all
Additional Information
Heavy-Duty
Connection Size 1
38S
Connection Type
Female Metric
Connection Type 1
Female DIN 24 deg Tube
Dimension Standards
DIN 2353
Dimensions
33 mm L
Fitting Type
Nut
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS5201 Series
Thread Size
M52x2

Product Questions & Answers (2)

Question by: Randy B on Oct 25, 2025, 2:35 PM
Can this tube nut hold up to some serious pressure in a hydraulic system?
Answer by: Customer Support on Oct 27, 2025, 6:30 AM
This DIN 2353S series tube nut is designed for demanding industrial environments where larger-diameter line connections are needed.
Question by: Melvin A on Sep 10, 2025, 4:05 PM
trying to match up a tube nut i already have, is this one the M52 x 2.0 female din style for S38 tube?
Answer by: Customer Support on Sep 11, 2025, 7:04 PM
The key callouts on this nut are a female DIN tube connection with an M52 x 2.0 thread on Side 1, sized for S38 tubing. It is a DIN 2353S series tube nut meant to be used with DIN-standard compression fittings.
