Ss Din Soft Seal Tube Cap

Ask A Question

Description & Features

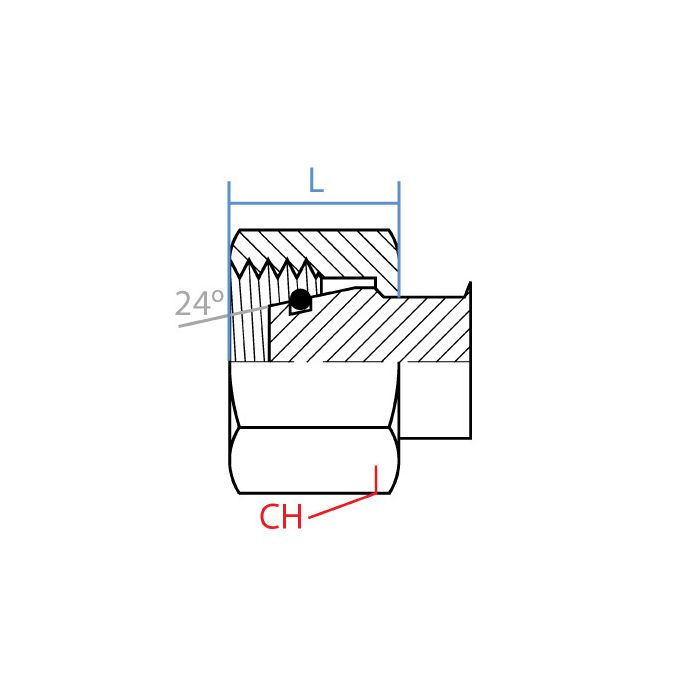

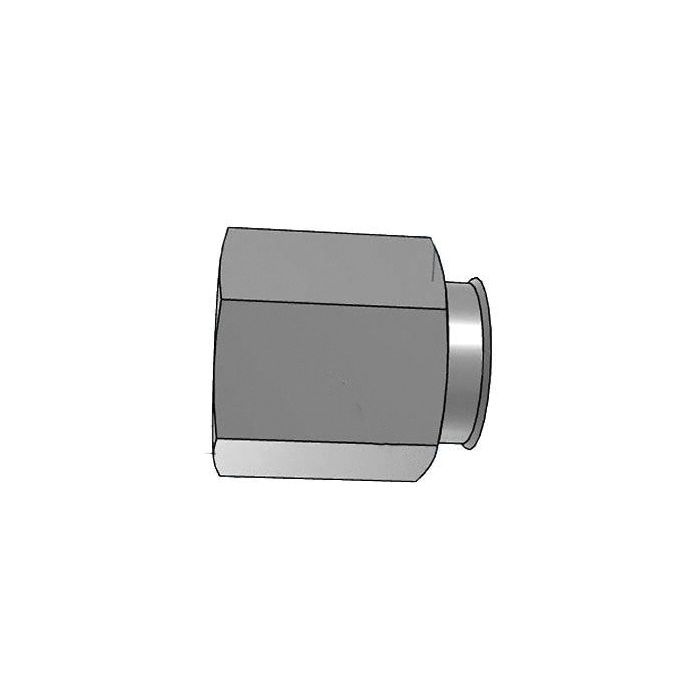

This Adaptall stainless steel DIN tube cap features a soft seal and M18 x 1.5 side 1 callout. Designed as a cap, it provides reliable sealing for DIN tube connections.

The Ss Din Soft Seal Tube Cap has a side 1 size of S10 and a side 1 female gender. It features an Adaptall channel width of 19mm and an Adaptall L length of 17.5mm, ensuring compatibility with corresponding fittings and connections.

SKU: SS5204S-10

Supplier Part Number (MPN): SS5204S-10

Specifications

Brand
adapt-all
Connection Type
Female Metric
Connection Type 1
Female Metric DIN Tube
Dimension Standards
DIN 2353
Dimensions
17.5 mm L
Fitting Type
Cap
Hex Size
19 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS5204S Series
Thread Size
M18x1.5

Product Questions & Answers (2)

Question by: Lee C on Dec 20, 2025, 3:21 PM
Part number SS5204S-10, is that the S10 size in the DIN soft seal cap for stainless? Just want to make sure I'm ordering the right one before I put in the request.
Answer by: Customer Support on Dec 22, 2025, 6:01 AM
Yes, SS5204S-10 is the S10 size. It carries an M18 x 1.5 thread callout on the female side and is built from stainless steel with a soft seal. The channel width runs 19mm and the overall length is 17.5mm, so if those dimensions line up with what you're capping off, you've got the right part.
Question by: Harvey F on Feb 16, 2026, 1:41 PM
got a DIN tube connection with M18 x 1.5 threads. is this the right cap for that, or am i off a size
Answer by: Customer Support on Feb 17, 2026, 6:54 PM
Match it up by the callout and type: this cap is for a DIN tube connection with an M18 x 1.5 side 1 callout, and it is a female side 1 in size S10.
