Ss F. Din X M. Din Reducer

Description & Features

Manufactured from stainless steel, this straight reducer connects a female DIN tube fitting (M30 x 2.0, S20) on one side to a male DIN tube fitting (M24 x 1.5, S16) on the other, allowing for a step-down transition between two DIN tube sizes within a hydraulic circuit. The straight configuration keeps the connection in-line, making it well suited for installations where space or routing constraints require a compact, no-angle fitting.

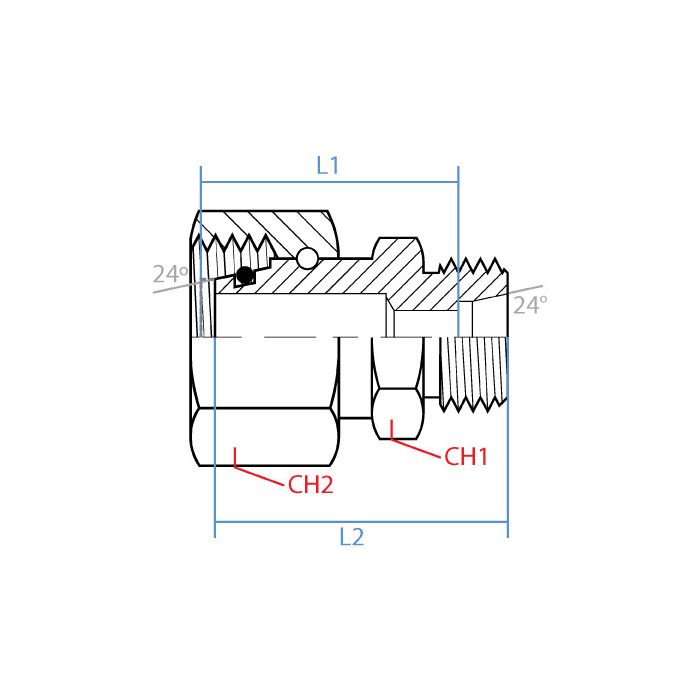

The Ss F. Din X M. Din Reducer is an Adaptall product, built to the dimensional standards associated with the Adaptall fitting system. Overall length runs from 36.5mm on the S20 side to 42mm on the S16 side, with wrench widths of 27mm and 36mm at each respective end. Stainless steel construction makes this fitting appropriate for applications where corrosion resistance is a priority.

SKU: SS5315S-20-16

Supplier Part Number (MPN): SS5315S-20-16

Specifications

CH1 Width 27mm	CH2 Width 36mm	L1 Length 36.5mm	L2 Length 42mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M30 X 2.0	Side 1 Gender F	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5315S-20-16	Product Weight 0.64 lbs

Product Questions & Answers (1)

Question by: Earl S on Sep 10, 2025, 8:23 AM

trying to step down from an S20 DIN tube fitting to an S16, is this the right reducer?

Answer by: Customer Support on Sep 12, 2025, 6:10 AM

For that size change, it matches up as a straight reducer with a female DIN tube end M30 x 2.0 (S20) on one side and a male DIN tube end M24 x 1.5 (S16) on the other.
