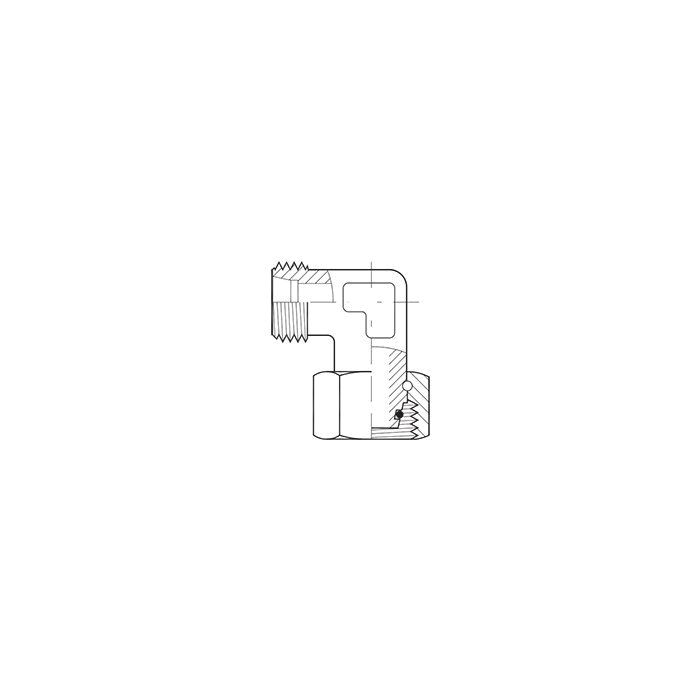

Ss 90* Din X F Din Swivel

Ask A Question

Description & Features

This stainless steel 90° elbow Adaptall fitting features a DIN tube connection on both ends. On side one, it offers a male M16 X 1.5 connection with an L10 size. Side two provides a female M16 X 1.5 connection, also with an L10 size. The Ss 90* Din X F Din Swivel is suitable for various hydraulic applications requiring a 90-degree change in direction.

This Adaptall fitting has a Ch1 width of 14mm, a Ch2 width of 19mm, an L1 length of 22mm, an L2 length of 15mm, and an L3 length of 29mm.

SKU: SS5360L-10

Supplier Part Number (MPN): SS5360L-10

Specifications

Brand
adapt-all
Additional Information
Light-Duty
Connection Size 2
10 mm
Connection Type
Female Metric Swivel, Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Female DIN Tube Swivel
Dimension Standards
DIN 2353
Dimensions
22 mm L
Fitting Type
90 deg Elbow
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS5360 Series
Thread Size
M16x1.5

Product Questions & Answers (3)

Question by: Rod W on Sep 29, 2025, 8:51 PM
both sides on this fitting are M16 x 1.5 DIN tube connections -- just one's male and one's female, right? trying to make sure i got the right part before i pull the trigger on ordering
Answer by: Customer Support on Oct 1, 2025, 6:39 AM
Correct on both counts. Side one is a male M16 x 1.5 DIN tube connection at L10 size, and side two is a female M16 x 1.5 DIN tube connection, also L10. So yes, same thread callout on each end, just opposite genders. That swivel configuration lets you make a 90-degree direction change while keeping the DIN tube interface on both sides of the joint.
Question by: Lee M on Oct 11, 2025, 5:40 PM
Will this fitting work if I need a 90-degree turn in my hydraulic setup?
Answer by: Customer Support on Oct 13, 2025, 6:27 AM
Absolutely, this Adaptall fitting is a 90-degree elbow designed specifically for hydraulic applications that require changing the direction of the fluid line.
Question by: Wayne G on Feb 27, 2026, 8:26 PM
trying to swap out an elbow on a DIN tube run, is this one male M16x1.5 on one side and female M16x1.5 on the other?
Answer by: Customer Support on Mar 1, 2026, 6:11 AM
For fit confirmation, side 1 is a male M16 x 1.5 DIN tube connection in size L10, and side 2 is a female M16 x 1.5 DIN tube connection, also size L10.
