Ss 90* Din X F Din Swivel

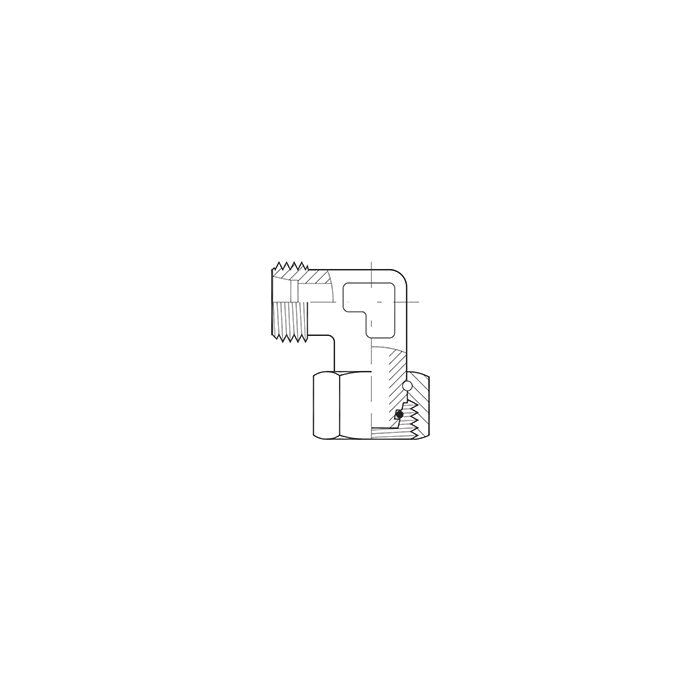

Constructed from stainless steel, this 90° elbow fitting from Adaptall is designed for DIN tube connections on both sides, with one male and one female end in an L18 size, both threaded at M26 x 1.5. The female swivel side allows rotational adjustment during installation, making alignment in tight or fixed-line arrangements more manageable without stressing the connected tubing.

The Ss 90° Din x F Din Swivel suits hydraulic circuit assemblies where a right-angle transition between DIN tube lines is required. Stainless steel construction supports use in corrosive or washdown-intensive environments. Key dimensions include a Ch1 wrench width of 24mm, Ch2 of 32mm, and overall lengths of 31mm (L1), 23.5mm (L2), and 35.5mm (L3).

SKU: SS5360L-18

Supplier Part Number (MPN): SS5360L-18
