Ss 90* Din X F Din Swivel Complete

Description & Features

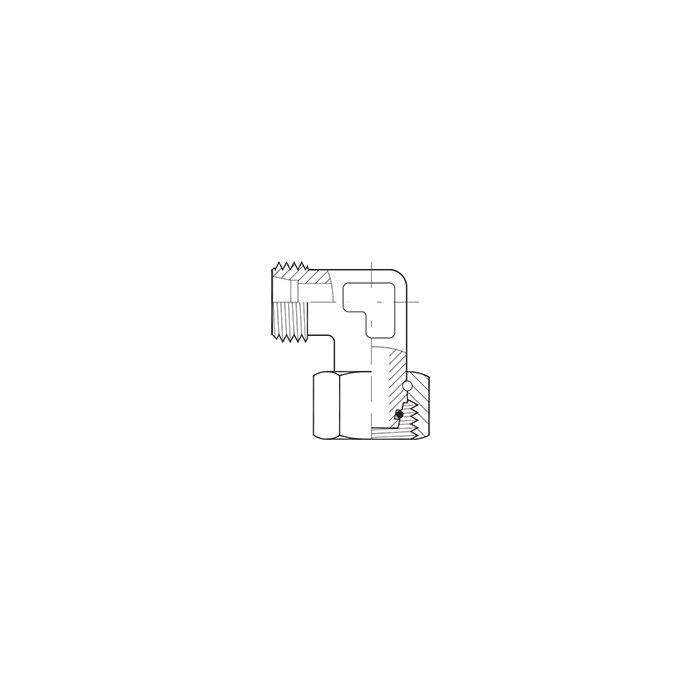

Constructed from stainless steel, this 90° elbow swivel fitting connects DIN tube fittings in configurations where a right-angle transition is required. The Ss 90° Din X F Din Swivel Complete features a male DIN tube end (M36 x 2.0, L28) on one side and a female DIN tube swivel end (M36 x 2.0, L28) on the other, allowing rotational adjustment during assembly to simplify installation in tight or angled routing situations.

Overall dimensions include an L1 length of 38mm, L2 of 30.5mm, and L3 of 41.5mm, with wrench flats measuring 37mm on side one and 46mm on side two. The stainless steel construction makes this fitting well suited for hydraulic and industrial fluid systems where corrosion resistance is a priority.

SKU: SS5360L-28C

Supplier Part Number (MPN): SS5360L-28C

Specifications

CH1 Width 37mm	CH2 Width 46mm	L1 Length 38mm	L2 Length 30.5mm	L3 Length 41.5mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size L28	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5360L-28C	Product Weight 1.20 lbs

Product Questions & Answers (1)

Question by: Howard W on Apr 6, 2025, 2:43 PM

trying to swap out a bent elbow, is this one the kind with M36 x 2.0 on both ends and a swivel female side?

Answer by: Customer Support on Apr 7, 2025, 7:38 PM

Built for DIN tube connections, it has a male DIN tube end M36 x 2.0 (size L28) on one side and a female DIN tube swivel end M36 x 2.0 (size L28) on the other, with a 90 degree elbow between them.
