Ss 90* Din X F Din Swivel

Description & Features

This Adaptall stainless steel 90° elbow features a DIN tube connection on both ends, one male and one female. Each side features a M36 x 2.0 callout and S25 size.

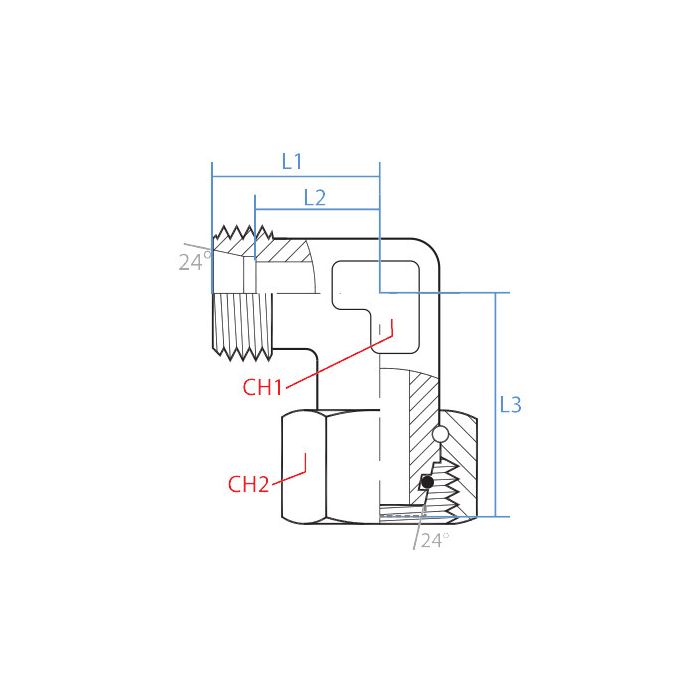

The Ss 90* Din X F Din Swivel offers a robust solution for connecting fluid conveyance lines at a 90-degree angle. Adaptall Ch1 Width: 37mm, Adaptall Ch2 Width: 46mm, Adaptall L1 Length: 42mm, Adaptall L2 Length: 30mm, Adaptall L3 Length: 50mm

SKU: SS5360S-25

Supplier Part Number (MPN): SS5360S-25

Specifications

CH1 Width 37mm	CH2 Width 46mm	L1 Length 42mm	L2 Length 30mm	L3 Length 50mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender F	Side 2 Size S25	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5360S-25	Product Weight 1.43 lbs

Product Questions & Answers (1)

Question by: Wade Y on Sep 12, 2025, 9:25 AM

both ends on this fitting are M36 x 2.0 DIN tube, right? just want to make sure I ain't mixing up the male and female sides before I go cutting lines

Answer by: Customer Support on Sep 14, 2025, 6:31 AM

Both sides share the same M36 x 2.0 thread callout and S25 sizing, but they are not identical. Side one is male DIN tube and side two is female DIN tube. So you've got one of each, same thread spec on both, just opposite genders. Worth double-checking your existing connections before assembly so you're orienting the elbow the right direction from the start.
