Ss Din X Fdin Swivel Run Tee

Description & Features

Constructed from stainless steel, this Adaptall SS Din X Fdin Swivel Run Tee provides a tee configuration with two male DIN tube ports along the run and a female DIN tube swivel port on the branch. All three connections carry an M16 x 1.5 thread at the S08 size, making this a consistent, single-size fitting suitable for DIN tube line assemblies where a branch takeoff is required.

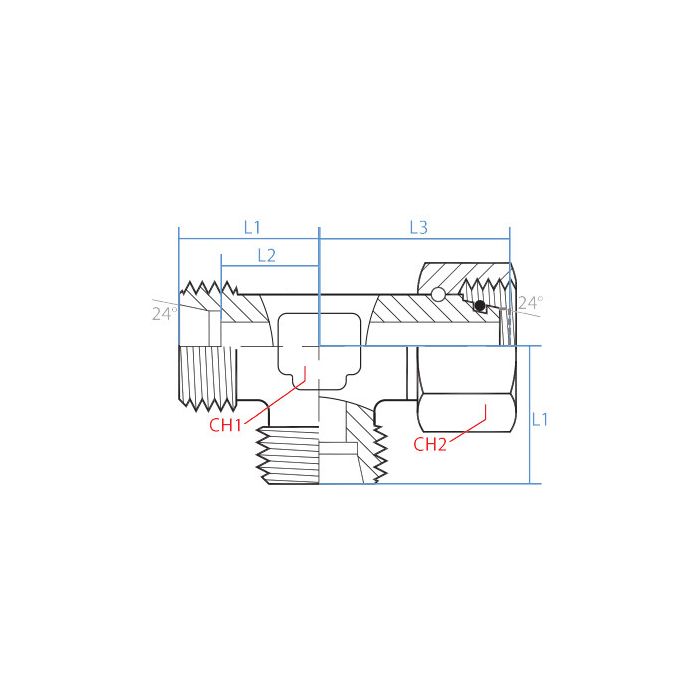

The swivel function on the female branch port simplifies installation by allowing rotational alignment without disturbing the run connections. Stainless steel construction suits environments where corrosion resistance is a priority. Key dimensional references include a 14 mm wrench width on side one, 19 mm on side two, and lengths of 24 mm, 17 mm, and 27.5 mm across the three axes.

SKU: SS5390S-08

Supplier Part Number (MPN): SS5390S-08

Specifications

CH1 Width 14mm	CH2 Width 19mm	L1 Length 24mm	L2 Length 17mm	L3 Length 27.5mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size S08	Side 2 Type Din Tube	Side 3 Callout M16 X 1.5	Side 3 Gender F	Side 3 Size S08	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5390S-08	Product Weight 0.26 lbs

Product Questions & Answers (1)

Question by: Stan S on Jun 16, 2025, 6:57 AM

Will this tee fitting hold up to regular use in a hydraulic system?

Answer by: Customer Support on Jun 17, 2025, 11:24 AM

Stainless steel construction ensures this tee fitting will resist corrosion, making it suitable for hydraulic systems where that's a concern.
