Ss Din X Fdin Swivel Run Tee

Description & Features

Constructed from stainless steel, the SS Din X Fdin Swivel Run Tee is a three-port tee fitting designed for DIN tube connections in hydraulic systems requiring reliable, articulating branch points. Two male DIN tube ports (M24 x 1.5) run inline, while a female DIN tube swivel port (M24 x 1.5) branches from the side, all three sized at S16.

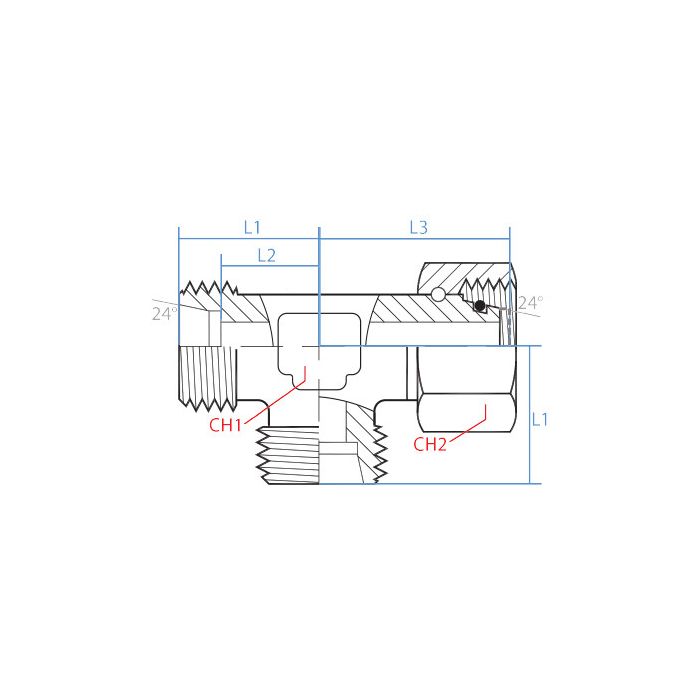

The swivel function on the female branch port allows for angular adjustment during installation, reducing stress on connected lines and simplifying routing in tight or complex arrangements. Stainless steel construction supports use in corrosive or washdown-intensive environments where carbon steel fittings are unsuitable. Key body dimensions include a 33mm L1, 24.5mm L2, and 36.5mm L3 length, with wrench flats of 24mm and 30mm across the two connection sides.

SKU: SS5390S-16

Supplier Part Number (MPN): SS5390S-16

Specifications

CH1 Width 24mm	CH2 Width 30mm	L1 Length 33mm	L2 Length 24.5mm	L3 Length 36.5mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Side 3 Callout M24 X 1.5	Side 3 Gender F	Side 3 Size S16	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5390S-16	Product Weight 0.68 lbs

Product Questions & Answers (2)

Question by: Cody B on May 17, 2025, 8:38 AM

got a branch line that keeps binding up during assembly cause theres no room to swing a wrench, would the swivel on the female port actually help with that kind of situation?

Answer by: Customer Support on May 19, 2025, 6:21 AM

That swivel on the female branch port is exactly what helps in that spot. It lets you rotate the connected line into position without having to torque the whole fitting, which takes a lot of the fight out of routing in cramped spaces. The two inline male DIN ports stay fixed, so your run line stays put while the branch adjusts. If binding during assembly is the main headache, this fitting addresses it directly.

Question by: Danny S on Sep 1, 2025, 6:33 AM

What size wrench do I need for tightening this tee fitting up?

Answer by: Customer Support on Sep 2, 2025, 2:43 PM

You'll need a 24mm wrench for one side and a 30mm wrench for the other.
