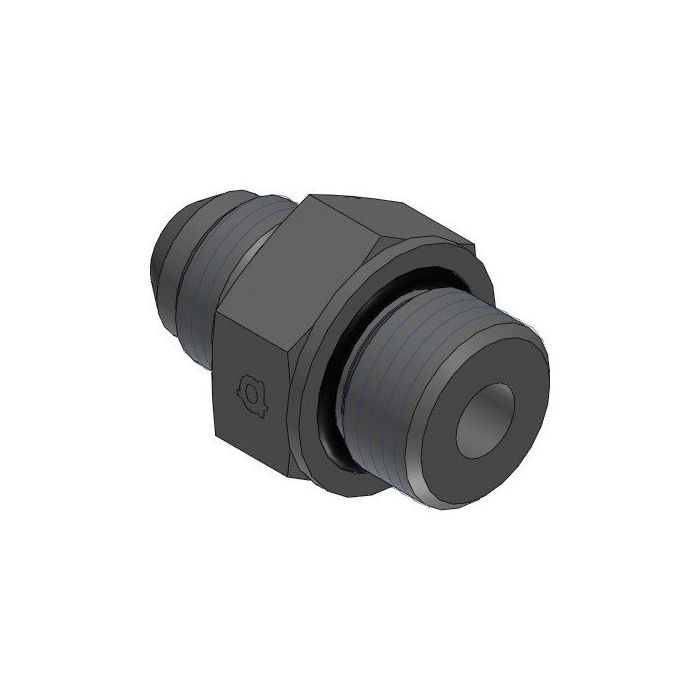

Ss316 Mjic X Mbspp C/W O-Ring

Ask A Question

Description & Features

Designed for robust industrial applications, this stainless steel connector offers reliable performance in demanding environments. The SS316 MJIC X MBSPP C/W O-Ring ensures a secure and leak-free connection, featuring a straight shape for streamlined installation. It includes a male JIC fitting on one side with a 7/16 - 20 UNF thread and a 1/4" size, paired with a male BSPP fitting on the other side with a G 3/8 - 19 thread and a 3/8" size.

With a compact length of 35.5mm and a width of 24mm, this connector is engineered from high-quality stainless steel material, providing excellent corrosion resistance and durability. Ideal for use in hydraulic systems and various industrial settings, its design incorporates an O-ring for added sealing integrity, ensuring optimal performance. The Adaptall brand stands for quality and precision in hydraulic components.

SKU: SS9002-04-06

Supplier Part Number (MPN): SS9002-04-06

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
34 mm L
Fitting Type
Adapter
Hex Size
24 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9002 Series
Thread Size
3/8-19 x 7/16-20

Product Questions & Answers (2)

Question by: Lee M on Jan 10, 2026, 5:26 PM
trying to hook a 1/4 jic line into a 3/8 bspp port, is this the right adapter?
Answer by: Customer Support on Jan 12, 2026, 8:38 AM
For that combo, it matches up as a straight male JIC on one end and a straight male BSPP on the other. Side 1 is male JIC 1/4 with 7/16 - 20 UNF threads, and side 2 is male BSPP 3/8 with G 3/8 - 19 threads, plus an O-ring on the BSPP side for sealing.
Question by: Shawn P on May 2, 2025, 10:25 AM
Will this here fitting work with stainless steel tubing without galling up the threads?
Answer by: Customer Support on May 4, 2025, 7:28 AM
Designed with robust industrial applications in mind, this stainless steel connector should provide reliable performance when connecting stainless steel tubing, offering excellent corrosion resistance and durability in demanding environments.
