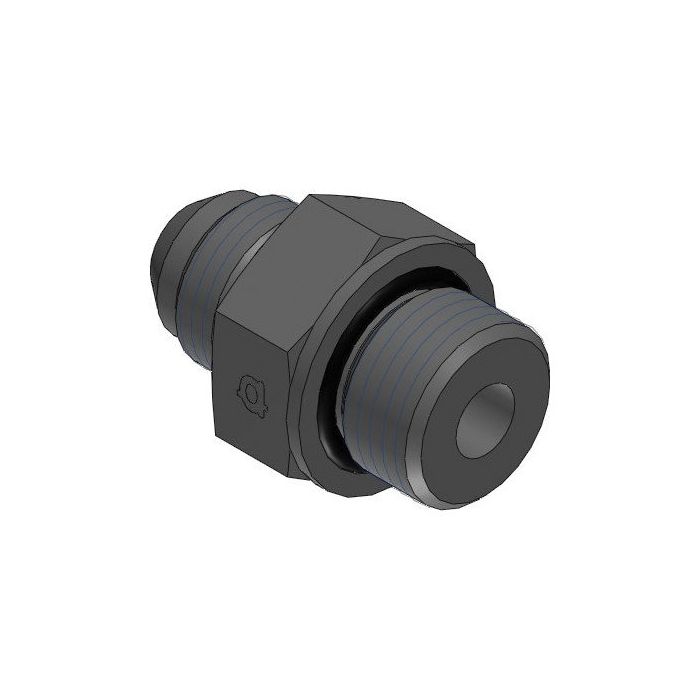

Ss316 Mjic X Mbspp C/W O'Ring

Description & Features

This Adaptall straight adapter fitting features a 3/8" size on both ends. It adapts a 9/16 - 18 UNF JIC male connection to a G 3/8 - 19 Bspp male connection, and is constructed from stainless steel.

The Ss316 Mjic X Mbspp C/W O'Ring adapter has a Side 1 callout of 9/16 - 18 UNF and a Side 2 callout of G 3/8 - 19. This straight-shaped fitting has an Adaptall Ch Width of 22mm and Adaptall L Length of 35.6mm.

SKU: SS9002-06-06

Supplier Part Number (MPN): SS9002-06-06

Alternate Part Numbers: C1FR15

Specifications

CH Width 22mm	L Length 35.6mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number C1FR15	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9002-06-06	Product Weight 0.12 lbs

Product Questions & Answers (3)

Question by: Sheila A on Apr 17, 2025, 5:55 PM

Got a piece of equipment running BSPP ports and my hydraulic line ends in a JIC fitting. Will this adapter work to connect the two without needing extra fittings in between?

Answer by: Customer Support on Apr 19, 2025, 7:13 AM

Yeah, that's exactly what this one's built for. One end is a 9/16-18 UNF JIC male and the other is a G 3/8-19 BSPP male, so it bridges those two thread standards in a single straight fitting. Both sides are 3/8" size, so as long as your line and port match up to those specs, you're good to go without stacking additional adapters.

Question by: Larry C on May 2, 2025, 2:01 PM

Just want to be sure -- this adapter goes from a JIC to a BSPP fitting, right? Both 3/8"?

Answer by: Customer Support on May 4, 2025, 6:28 AM

That's correct. It adapts a 9/16 - 18 UNF JIC male connection to a G 3/8 - 19 BSPP male connection, both sides being 3/8" in size.

Question by: Glen C on Jun 10, 2025, 8:16 AM

got a hose end that’s -6 JIC male, and the port on the block is G 3/8-19 BSPP. is this the right adapter to tie those together?

Answer by: Customer Support on Jun 11, 2025, 10:53 AM

For that mix of threads, yes. Side 1 is a 9/16-18 UNF JIC male and Side 2 is a G 3/8-19 BSPP male, both in 3/8 inch size, so it’s made to bridge a -6 JIC connection over to a 3/8 BSPP port.
