Ss316 Mjic X Mbspp C/W O'Ring

Ask A Question

Description & Features

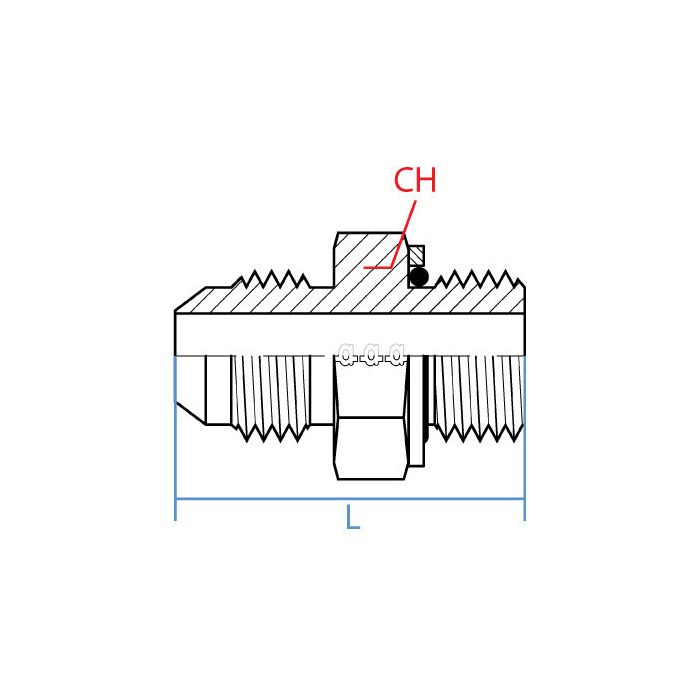

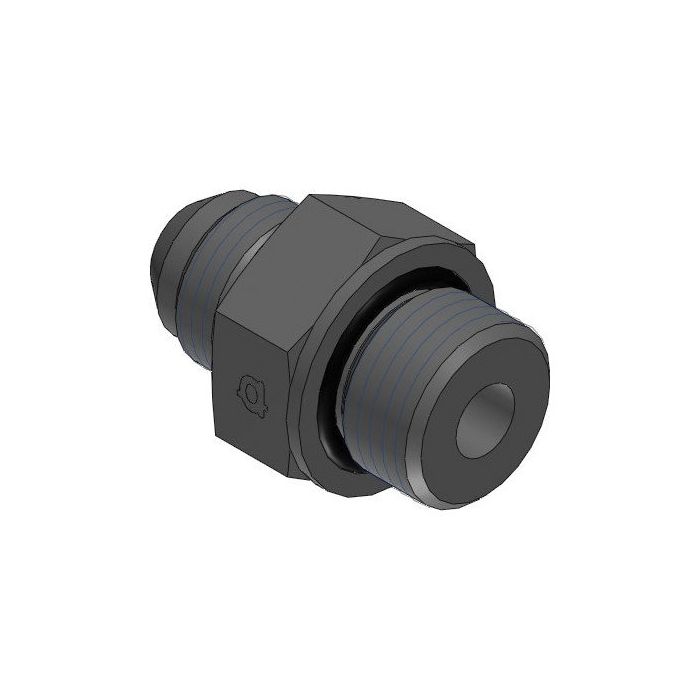

This straight stainless steel adapter fitting features a 1/2" male JIC (3/4 - 16 UNF) end and a 3/8" male Bspp (G 3/8 - 19) end, complete with an O-ring. The Ss316 Mjic X Mbspp C/W O'Ring adapter is constructed from stainless steel for durability and corrosion resistance in demanding hydraulic applications. It has a wrench flat of 24mm, and an overall length of 38.2mm.

SKU: SS9002-08-06

Supplier Part Number (MPN): SS9002-08-06

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
37.5 mm L
Fitting Type
Adapter
Hex Size
24 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9002 Series
Thread Size
3/4-16, 3/8-19

Product Questions & Answers (2)

Question by: Roy C on Oct 7, 2025, 3:08 PM
Will this adapter work with standard hydraulic fittings? I want to make sure it's compatible with what I already have.
Answer by: Customer Support on Oct 8, 2025, 7:52 PM
This adapter features a 1/2" male JIC (3/4 - 16 UNF) end and a 3/8" male BSPP (G 3/8 - 19) end, so you'll need to ensure your existing fittings match these specifications.
Question by: Chad R on Mar 27, 2026, 6:06 AM
trying to hook a 1/2 jic hose end over to a 3/8 bspp port, is this the right adapter?
Answer by: Customer Support on Mar 28, 2026, 8:25 PM
For that hookup, it matches what you described: one side is a 1/2 inch male JIC with 3/4-16 UNF threads, and the other side is a 3/8 inch male BSPP with G 3/8-19 threads, and it comes with an O-ring on the BSPP end.
