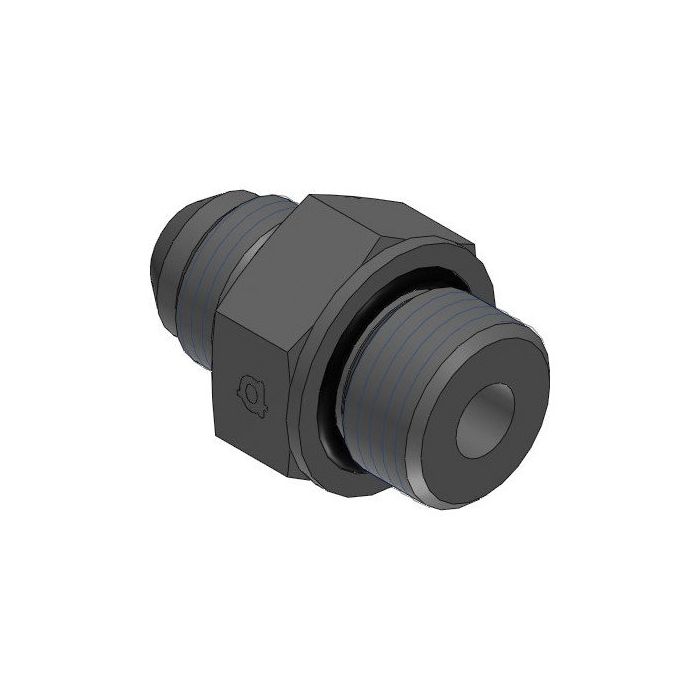

Ss316 Mjic X Mbspp C/W O'Ring

Ask A Question

Description & Features

Constructed from 316 stainless steel, this straight hydraulic adapter provides a reliable male JIC to male BSPP connection suited to industrial hydraulic systems where corrosion resistance is a priority. The JIC side features a 1-1/16–12 UN thread at 3/4" nominal size, while the BSPP side is threaded G 3/4–14, also at 3/4" nominal size. An O-ring is included to support a leak-free seal at the BSPP end.

The Ss316 Mjic X Mbspp C/W O'Ring is manufactured by Adaptall and measures 50.5mm in length with a 36mm across-flats width. The straight configuration makes it well suited for direct in-line connections between JIC and BSPP ported equipment in stainless-critical environments such as marine, chemical processing, or food-grade hydraulic circuits.

SKU: SS9002-12-12

Supplier Part Number (MPN): SS9002-12-12

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
51 mm L
Fitting Type
Adapter
Hex Size
36 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9002 Series
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (2)

Question by: Harold S on Jan 6, 2026, 9:32 AM
I need a stainless adapter to go from JIC to BSPP, both male, and both 3/4 inch. Is this the right one?
Answer by: Customer Support on Jan 8, 2026, 6:23 AM
This Adaptall adapter is indeed what you're looking for. It has a 3/4" male JIC on one side and a 3/4" male BSPP on the other, all in 316 stainless.
Question by: Lyle B on Aug 19, 2025, 4:44 PM
Got a BSPP port on a pump and need to tie into a JIC line, this straight adapter work for that?
Answer by: Customer Support on Aug 21, 2025, 10:50 AM
That's what this fitting is built for. One end is male JIC at 1-1/16-12 UN thread, the other is male BSPP at G 3/4-14, and both sides are 3/4" nominal. The straight configuration puts them in-line with no offset, so as long as your port and your line match those thread specs, you've got a direct connection. The O-ring comes with it to seal up the BSPP end, so you're not hunting for one separately.
