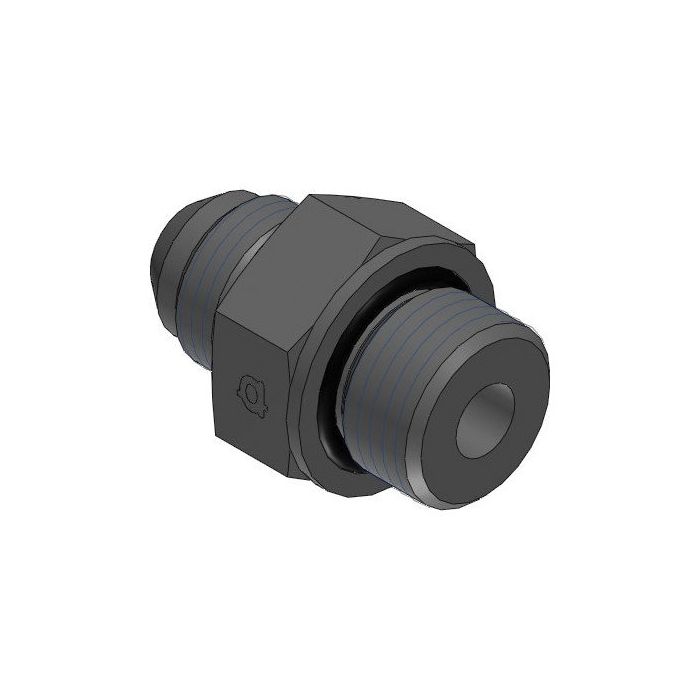

Ss316 Mjic X Mbspp C/W O'Ring

Description & Features

Constructed from robust stainless steel, this hydraulic fitting ensures superior durability and resistance to corrosion, making it ideal for demanding industrial environments. Designed for precise connectivity, the fitting features a straight configuration with a 1-5/16 - 12 UN male JIC thread on side one and a G 3/4 - 14 male BSPP thread on side two. These specifications ensure compatibility with a variety of hydraulic systems requiring secure and reliable connections.

The Ss316 Mjic X Mbspp C/W O'Ring incorporates an O-ring for enhanced sealing performance, reducing the risk of leaks and ensuring consistent operational efficiency. With an overall length of 51.5mm and a width of 36mm, it is engineered for ease of installation and optimal performance in high-pressure applications. This product is a testament to Adaptall's commitment to quality and precision engineering.

SKU: SS9002-16-12

Supplier Part Number (MPN): SS9002-16-12

Alternate Part Numbers: C1HK87

Specifications

CH Width 36mm	L Length 51.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number C1HK87	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9002-16-12	Product Weight 0.40 lbs

Product Questions & Answers (2)

Question by: Rhonda F on Aug 10, 2025, 9:04 AM

trying to swap a fitting out, what threads are on each end of this one?

Answer by: Customer Support on Aug 12, 2025, 8:35 AM

On side one you have a 1-5/16 - 12 UN male JIC connection (listed as 1 inch). Side two is a G 3/4 - 14 male BSPP (listed as 3/4 inch), and it includes an O-ring on that BSPP side for sealing.

Question by: Kirk R on May 24, 2025, 12:20 PM

Got a system running G 3/4 BSPP ports and need to tie into a JIC line, this fitting work for that kind of hookup?

Answer by: Customer Support on May 26, 2025, 6:32 AM

Yeah, that's exactly what this fitting is built for. One end is a 1-5/16-12 UN male JIC thread, the other is a G 3/4-14 male BSPP thread, so it bridges those two thread standards in a straight configuration. Both sides are male, so you'd need female-threaded ports or couplings on each end of your line. The BSPP side comes with an O-ring for a solid seal, which helps a lot in keeping things tight without over-torquing.
