Stainless Mjic X Mbspp

Ask A Question

Description & Features

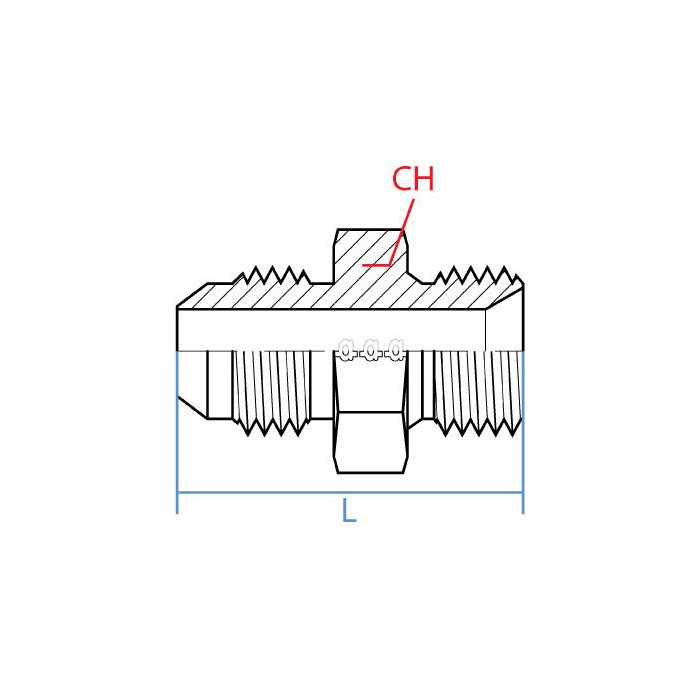

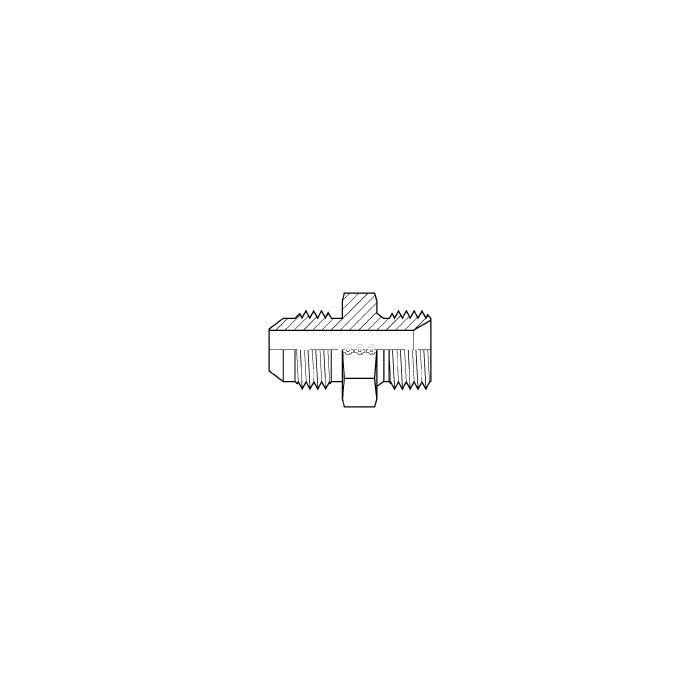

This straight Adaptall fitting connects stainless JIC and Bspp fluid lines. This stainless MJIC x MBSPP adapter features a 9/16 - 18 UNF JIC Side 1 with a 3/8" size and a G 1/2 - 14 Bspp Side 2 with a 1/2" size.

It measures 38.1mm in length, with a 27mm wrench flat.

SKU: SS9005-06-08

Supplier Part Number (MPN): SS9005-06-08

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, SAE J514
Dimensions
38 mm L
Fitting Type
Adapter
Hex Size
27 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9005 Series
Thread Size
1/2-14 x 9/16-18

Product Questions & Answers (2)

Question by: Howard P on Oct 20, 2025, 1:56 PM
trying to hook a JIC line to a BSPP port, is this the right adapter?
Answer by: Customer Support on Oct 21, 2025, 7:15 PM
It’s a straight stainless adapter made for exactly that kind of crossover. Side 1 is a male JIC in 3/8 size with 9/16-18 UNF threads, and side 2 is a male BSPP in 1/2 size with G 1/2-14 threads.
Question by: Frank B on Apr 7, 2025, 8:40 AM
Got a line running 3/8 JIC on one end and need to tie into a 1/2 BSPP port on a piece of imported equipment. this fitting do that job?
Answer by: Customer Support on Apr 9, 2025, 6:34 AM
That's what this adapter is built for. One end is a male 9/16-18 UNF JIC thread, which corresponds to a 3/8 JIC line, and the other end is a male G 1/2-14 BSPP thread for the 1/2 inch BSPP port. Both sides are male, so make sure your mating connections are female on both ends before ordering.
