Stainless Mjic X Mbspp

Ask A Question

Description & Features

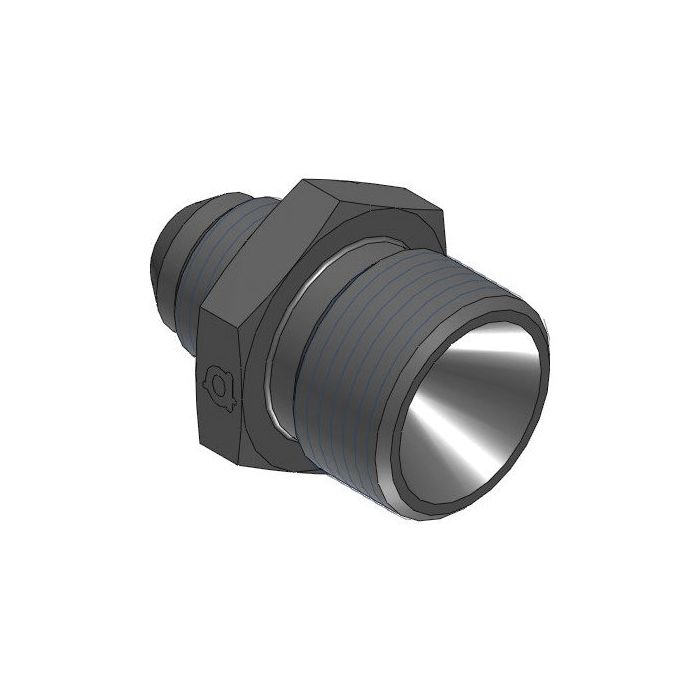

Constructed from stainless steel, this straight hydraulic adapter connects a 1/2" Male JIC fitting (3/4-16 UNF thread) on one end to a 1/2" Male BSPP fitting (G 1/2-14 thread) on the other. The Stainless Mjic X Mbspp is well suited for hydraulic circuits requiring a reliable JIC-to-BSPP transition, particularly in corrosion-sensitive environments where stainless material is specified.

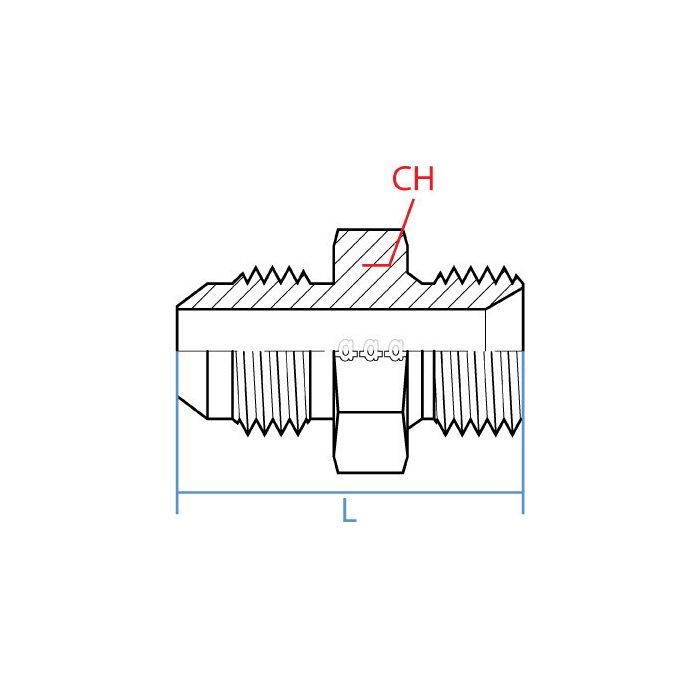

Manufactured by Adaptall, the adapter measures 42mm in length with a 27mm wrench width, making it straightforward to install and torque in confined spaces. The straight configuration keeps the connection compact and inline, without altering flow path direction.

SKU: SS9005-08-08

Supplier Part Number (MPN): SS9005-08-08

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
41 mm L
Fitting Type
Adapter
Hex Size
27 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9005 Series
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (3)

Question by: Lyle R on May 4, 2025, 4:24 PM
Will this here fitting work to hook up a JIC line to somethin' with a BSPP thread? They're both gonna be 1/2 inch.
Answer by: Customer Support on May 6, 2025, 1:36 PM
It sure will. This adapter connects a 1/2" Male JIC fitting to a 1/2" Male BSPP fitting.
Question by: Earl J on Aug 28, 2025, 11:30 AM
got a hose end thats 1/2 jic male, will this adapter let me hook it to a 1/2 bspP male port?
Answer by: Customer Support on Aug 29, 2025, 7:17 PM
Fit comes down to the thread callouts. One end is a 1/2 inch Male JIC with 3/4-16 UNF threads, and the other end is a 1/2 inch Male BSPP with G 1/2-14 threads. It is meant to bridge a JIC connection over to a BSPP connection in a straight, inline setup.
Question by: Ralph R on Apr 26, 2025, 1:46 PM
Got a piece of equipment running a 1/2" JIC port that needs to tie into a BSPP line, this straight adapter work for that?
Answer by: Customer Support on Apr 27, 2025, 2:15 PM
That's what this fitting is built for. One end is 3/4-16 UNF Male JIC, the other is G 1/2-14 Male BSPP, both in 1/2" size. Straight configuration means no change in flow direction, so it drops right into an inline connection without any extra fittings. The stainless construction makes it a solid pick anywhere corrosion is a concern.
