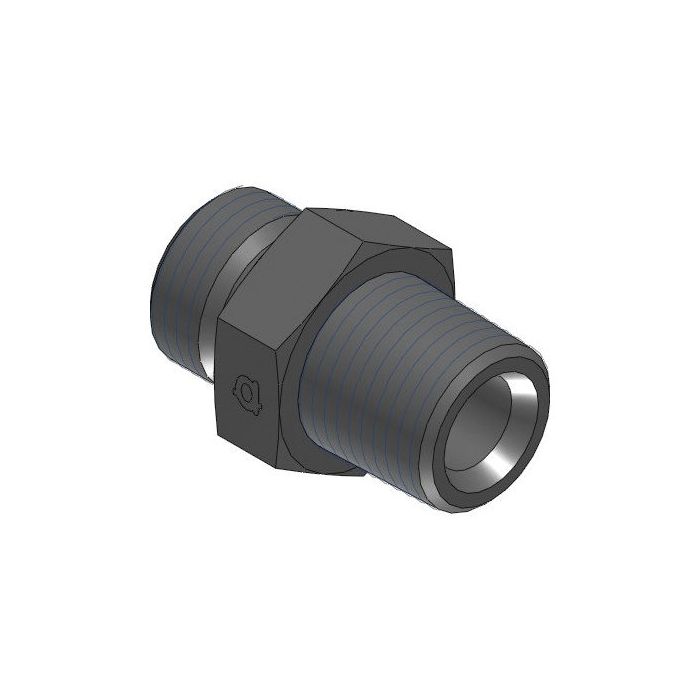

main product photo

Stainless 316 Mbspp X Mnpt

Ask A Question

Description & Features

This straight Adaptall fitting is made from durable 316 stainless steel and features male BSPP (G) and male NPT connections. The side 1 (BSPP) connection measures 3/8" with a G 3/8 - 19 callout, while the side 2 (NPT) connection measures 1/4" with a 1/4 - 18 NPTF callout.

The Stainless 316 Mbspp X Mnpt fitting has a wrench flat of 22mm and an overall length of 34.2mm. It provides a reliable connection in hydraulic applications.

SKU: SS9007-06-04

Supplier Part Number (MPN): SS9007-06-04

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6
Dimensions
34 mm L
Fitting Type
Adapter
Hex Size
22 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9007 Series
Thread Size
1/4-19 x 3/8-18

Product Questions & Answers (3)

Question by: Randy T on Jun 6, 2025, 9:30 AM
trying to hook a G 3/8 line into a 1/4 NPT port. is this the straight adapter for that?
Answer by: Customer Support on Jun 7, 2025, 6:43 PM
For that mix of threads, it matches up: side 1 is a male BSPP (G) 3/8 with a G 3/8 - 19 callout, and side 2 is a male 1/4 - 18 NPTF. It is a straight Adaptall fitting.
Question by: Hugh P on Sep 26, 2025, 9:15 PM
Will this fitting hold up to hydraulic pressures, or is it more for low-pressure stuff?
Answer by: Customer Support on Sep 28, 2025, 6:55 PM
This fitting, crafted from 316 stainless steel, is designed to provide a reliable connection in hydraulic applications.
Question by: Hugh C on May 29, 2025, 8:48 PM
fitting's got a 3/8 BSPP side and I need to tie into a 1/4 NPT port on a pump housing. this the right one for that?
Answer by: Customer Support on May 31, 2025, 7:16 PM
That match lines up exactly with what this fitting does. The BSPP side is a G 3/8-19 male connection and the NPT side is a 1/4-18 NPTF male, so you'd be going from the larger 3/8 BSPP thread into the smaller 1/4 NPT port. Just make sure your pump housing is female NPT and your upstream fitting or valve is female BSPP, since both ends here are male.
