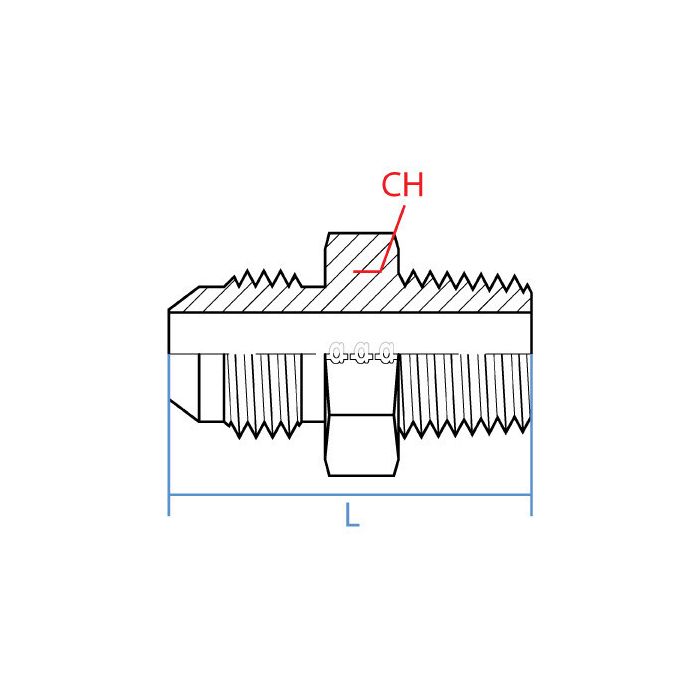

main product photo

Stainless 316 Mjic X Mbspt

Ask A Question

Description & Features

Constructed from durable stainless steel, this fitting offers superior corrosion resistance, making it ideal for demanding industrial environments. The stainless 316 MJIC x MBSPT fitting features a straight design and facilitates secure connections between hydraulic components. With a side 1 callout of 7/16 - 20 UNF and a side 2 callout of R 1/8 - 28, it ensures compatibility with various hydraulic systems. The male JIC and male BSPT threads provide reliable sealing for high-pressure applications.

This fitting measures 32.9mm in length and has a 13mm width across the flats, allowing for easy installation and maintenance. Designed by Adaptall, a trusted name in hydraulic solutions, it combines precision engineering with robust materials to meet the highest industry standards. This product is perfect for use in hydraulic systems where reliability and performance are paramount.

SKU: SS9011-04-02

Supplier Part Number (MPN): SS9011-04-02

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Dimensions
32 mm L
Fitting Type
Adapter
Hex Size
14 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9011 Series
Thread Size
7/16-20 x 1/8-28

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Stan M on Nov 1, 2025, 4:39 PM
got a 1/4" JIC male fitting on my hydraulic line and need to tie into a 1/8 BSPT port, this the right adapter for that?
Answer by: Customer Support on Nov 3, 2025, 8:18 AM
Yeah, that's exactly what this fitting is built for. One end is a 7/16-20 UNF male JIC thread, which corresponds to a 1/4" JIC connection, and the other end is an R 1/8-28 male BSPT. So if you've got a female JIC on your line and a female BSPT port on the component you're connecting to, this one drops right in.
Question by: Gary W on Jan 26, 2026, 12:57 PM
trying to swap a fitting on a line, is this one male JIC to male BSPT and what sizes are we talkin
Answer by: Customer Support on Jan 27, 2026, 8:23 PM
Built as a straight adapter, it connects a male JIC on side 1 to a male BSPT on side 2. Side 1 is 7/16-20 UNF (JIC, 1/4 inch size) and side 2 is R 1/8-28 (BSPT, 1/8 inch size).
Question by: Troy R on Apr 30, 2025, 9:35 AM
Will this here fitting hold up if I'm running some pretty serious pressure through it?
Answer by: Customer Support on May 1, 2025, 4:14 PM
Constructed from stainless 316, this fitting is designed to maintain a reliable seal even in high-pressure hydraulic applications. It's built to handle demanding conditions, giving you a secure connection.
