Stainless 316 Mbspp X Fnpt

Description & Features

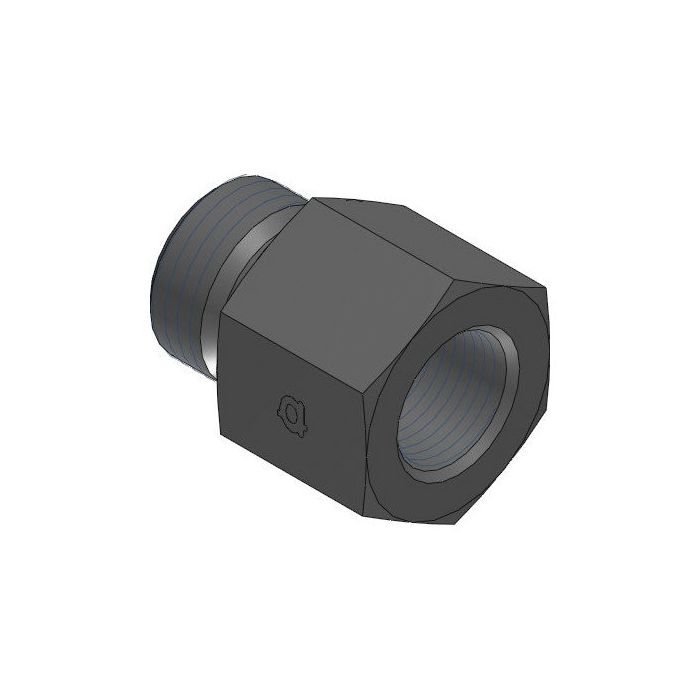

Constructed from 316 stainless steel, this straight hydraulic adapter provides a reliable connection between male BSPP and female NPT threaded ports. The 1/2" G thread (G 1/2 - 14) on the male BSPP side mates with a 1/2-14 NPTF female port on the opposite end, making it well suited for systems that require crossover between British and North American thread standards.

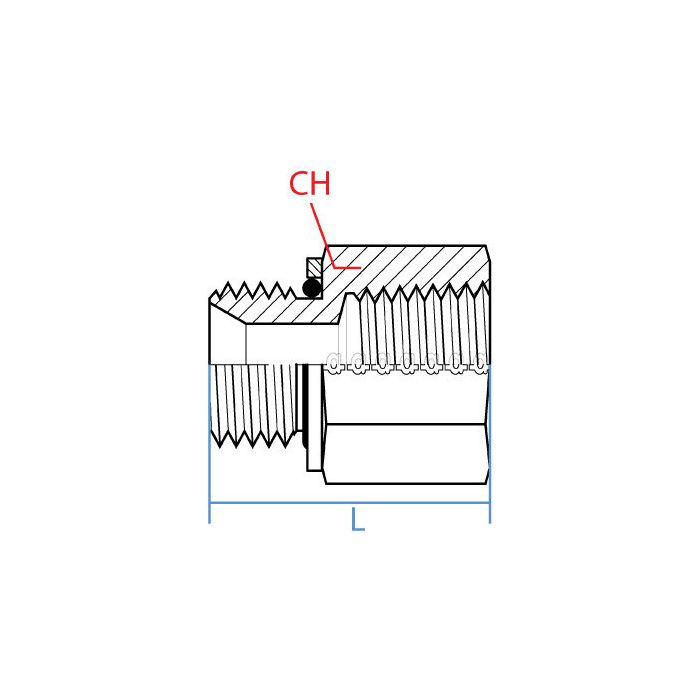

The Adaptall Stainless 316 Mbspp X Fnpt measures 42.1mm in overall length with a 27mm wrench flat width. The 316 stainless construction offers strong resistance to corrosion and chemical exposure, making this fitting appropriate for demanding fluid handling environments where carbon steel is not suitable.

SKU: SS9035S-08-08

Supplier Part Number (MPN): SS9035S-08-08

Specifications

CH Width 27mm	L Length 42.1mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9035S-08-08	Product Weight 0.24 lbs

Product Questions & Answers (1)

Question by: Dustin W on May 26, 2025, 7:18 PM

Reckon this'll hold up okay in a hydraulic system with some pretty nasty chemicals around?

Answer by: Customer Support on May 28, 2025, 3:32 PM

Given its 316 stainless steel construction, this adapter should offer strong resistance to corrosion and chemical exposure, making it suitable for demanding fluid handling environments where regular carbon steel wouldn't cut it.
