Stainless 316 Mnpt X Fbspp

Ask A Question

Description & Features

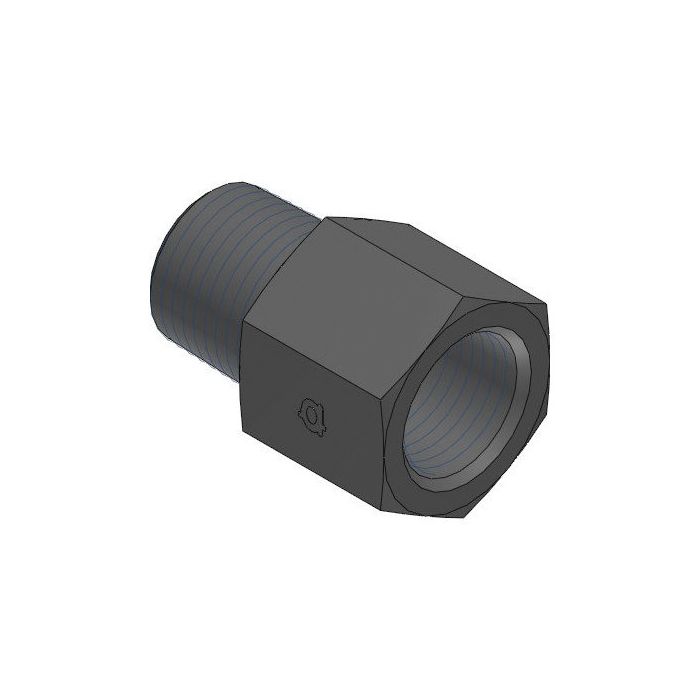

This Adaptall fitting is made from 316 stainless steel and features a straight shape. It adapts between male NPT and female BSPP connections. Side 1 features a 1/2" male NPT end with 1/2 - 14 NPTF callout, while Side 2 features a 1/2" female BSPP end with G 1/2 - 14 callout.

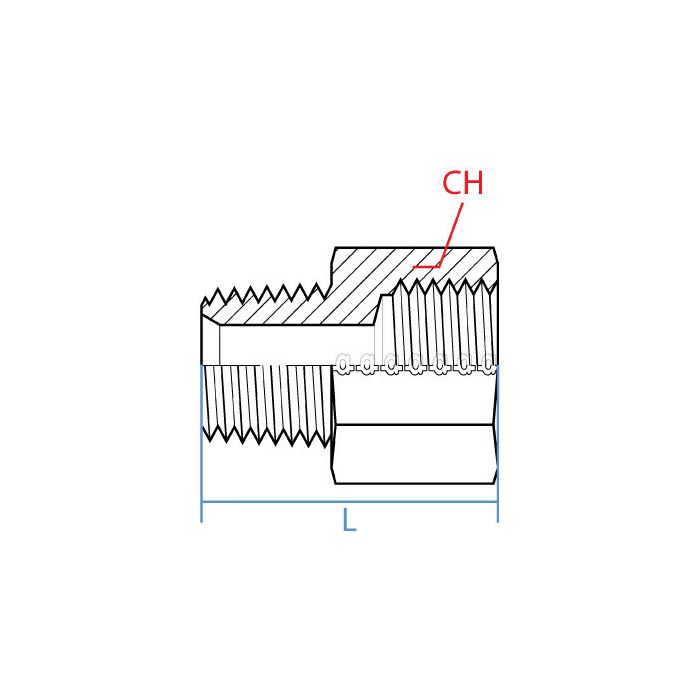

The Stainless 316 Mnpt X Fbspp fitting has a channel width of 28.5mm and an overall length of 44.6mm.

SKU: SS9037-08-08

Supplier Part Number (MPN): SS9037-08-08

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female BSP, MNPT
Connection Type 1
Male NPT
Connection Type 2
Female BSPP
Dimension Standards
ANSI B1.20.3, BS 5200, ISO 1179, ISO 8434-6
Dimensions
42.5 mm L
Fitting Type
Adapter
Hex Size
27 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9037 Series
Thread Size
1/2-14

Product Questions & Answers (3)

Question by: Dwight P on Nov 29, 2025, 5:48 PM
fitting's got a 1/2" NPT on one end and the other end's BSPP, that right?
Answer by: Customer Support on Dec 1, 2025, 5:00 PM
Correct on both counts. One end is a 1/2" male NPT with a 1/2-14 NPTF callout, and the other end is a 1/2" female BSPP with a G 1/2-14 callout. So if you're bridging an NPT-threaded component on one side to a BSPP port on the other, this is the fitting that makes that connection work without adapting each side separately.
Question by: Warren P on Apr 6, 2025, 9:34 PM
Reckon this fitting'll hold up okay outside?
Answer by: Customer Support on Apr 8, 2025, 2:17 PM
Made from 316 stainless, this fitting offers good corrosion resistance, which should help it last in outdoor conditions.
Question by: Denise H on Jul 18, 2025, 4:44 PM
got a hose end that’s 1/2 male NPT and the other side on the manifold is BSPP female, is this the right adapter or am i mixing it up?
Answer by: Customer Support on Jul 20, 2025, 11:58 AM
For that combo, you are mixing it up. This fitting is 1/2 inch male NPT (1/2 - 14 NPTF) on Side 1 and 1/2 inch female BSPP (G 1/2 - 14) on Side 2, so it adapts from a female NPT port to a male BSPP thread.
