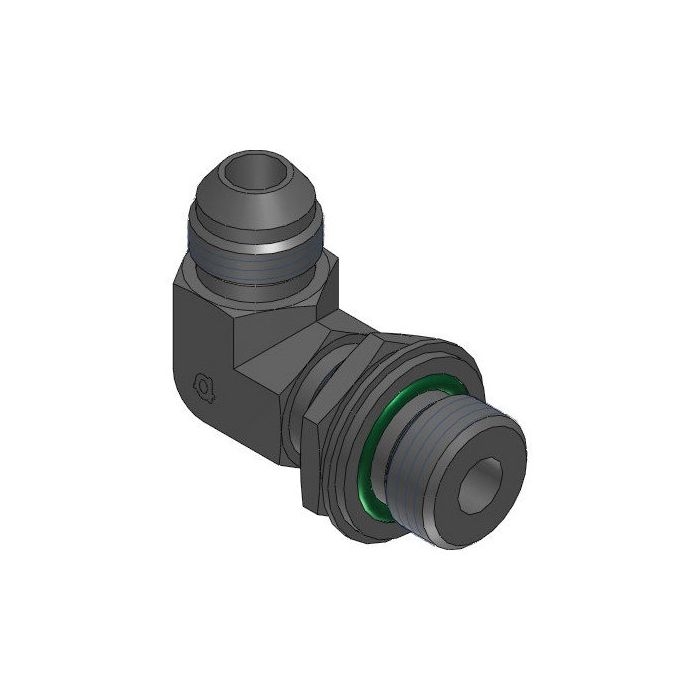

main product photo

Ss316 90*Adj. Elb Mjic X Mbspp

Ask A Question

Description & Features

Constructed from 316 stainless steel, this 90° adjustable elbow fitting connects a 3/8" male JIC (9/16-18 UNF) end to a 1/4" male BSPP (G 1/4-19) end, making it a practical solution for cross-standard hydraulic connections where JIC and BSPP thread types must mate. The adjustable elbow design allows the fitting to be positioned at the optimal angle before locking, reducing stress on hose assemblies and easing installation in confined spaces.

The Ss316 90° Adj. Elb Mjic X Mbspp is an Adaptall product, built to the dimensional standards associated with that system. With a Ch1 width of 14mm, a Ch2 width of 19mm, an L1 length of 29.5mm, and an L2 length of 25.6mm, the fitting is compact and suited to space-constrained hydraulic circuits. The 316 stainless steel construction offers strong resistance to corrosion, making it appropriate for demanding industrial environments where moisture, chemicals, or washdown conditions are a factor.

SKU: SS9059-06-04

Supplier Part Number (MPN): SS9059-06-04

Specifications

Brand
adapt-all
Connection Size 1
9/16 in
Connection Size 2
3/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Fitting Type
90 deg Elbow
Material
Stainless Steel
Material Construction
316 Stainless Steel
Maximum Operating Pressure
6000 psi
Series
SS9059 Series
Thread Size
9/16-18 x 3/8-19

Product Questions & Answers (2)

Question by: Bobby H on Mar 14, 2026, 11:29 AM
trying to hook a 3/8 jic hose end to a 1/4 bspp port, is this the right elbow for that?
Answer by: Customer Support on Mar 15, 2026, 1:41 PM
For that kind of cross thread hookup, it matches up as a 90 degree adjustable elbow with a 3/8 inch male JIC end (9/16-18 UNF) on one side and a 1/4 inch male BSPP end (G 1/4-19) on the other.
Question by: Daryl C on Mar 21, 2026, 10:36 AM
Got a piece of equipment running BSPP ports and the hose side is JIC, this fitting cross those two over, or am I lookin at the wrong part?
Answer by: Customer Support on Mar 22, 2026, 4:38 PM
That's exactly what this one's built for. One end is a 3/8" male JIC with a 9/16-18 UNF thread, and the other end is a 1/4" male BSPP running G 1/4-19. So if you've got a JIC hose assembly needing to tie into a BSPP port, this gets you there without fabricating something custom.
