Ss316 90*Adj.Elb Mjic X Mbspp

Description & Features

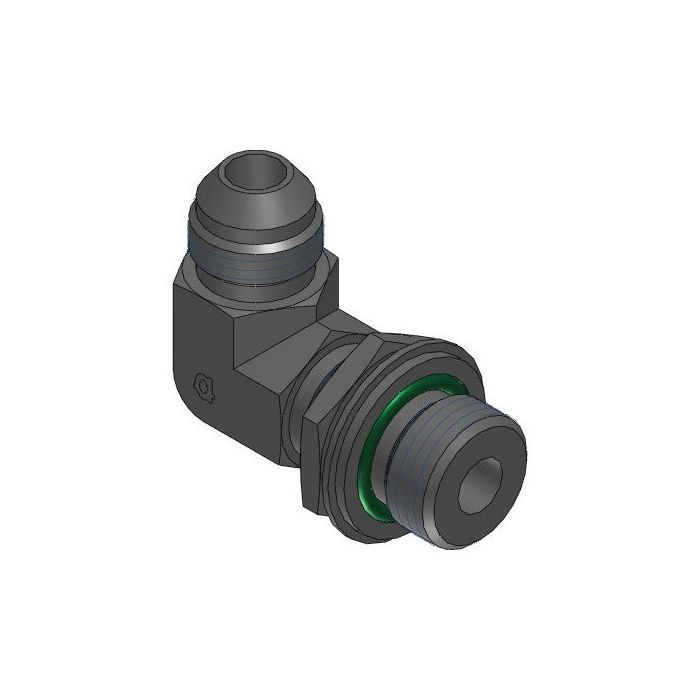

Constructed from 316 stainless steel, this 90-degree adjustable elbow adapter connects a 1/2" Male JIC fitting (3/4–16 UNF thread) on one side to a 3/8" Male BSPP fitting (G 3/8–19 thread) on the other. The adjustable elbow configuration allows the outlet angle to be set during installation, making it well-suited for routing hydraulic lines in confined spaces or around obstructions.

The Ss316 90° Adj. Elb Mjic X Mbspp is an Adaptall product, built to the dimensional standards associated with that fitting series. Overall installed length measures 33mm on the JIC side and 38mm on the BSPP side, with wrench flat widths of 19mm and 22mm respectively. Stainless steel construction makes this fitting appropriate for hydraulic and fluid systems where corrosion resistance is a priority.

SKU: SS9059-08-06

Supplier Part Number (MPN): SS9059-08-06

Specifications

CH1 Width 19mm	CH2 Width 22mm	L1 Length 33mm	L2 Length 38mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9059-08-06	Product Weight 0.35 lbs

Product Questions & Answers (1)

Question by: Roger H on Dec 22, 2025, 1:04 PM

Got a machine with a 3/8 BSPP port and I need to swing the line off at a 90 but the JIC side has to land at 1/2 inch. This fitting do that?

Answer by: Customer Support on Dec 23, 2025, 5:03 PM

Yeah, that's exactly what this one's built for. One end is a 3/4-16 UNF Male JIC, which is the standard thread for a 1/2" JIC connection, and the other end is a Male BSPP at G 3/8-19. The 90-degree elbow is adjustable, so you can clock the outlet to whatever angle works before you lock it down during installation. Stainless 316 construction throughout.
