Ss316 90* Elbow Mjic X Mmetric

Description & Features

Constructed from 316 stainless steel, this 90° elbow adapter connects a 3/8" Male JIC fitting (9/16-18 UNF thread) on one end to an M14 x 1.5 Male Metric fitting on the other, making it a reliable choice for hydraulic systems that require a transition between JIC and metric connection standards. The right-angle configuration allows for directional changes in tight routing situations where a straight adapter would not fit.

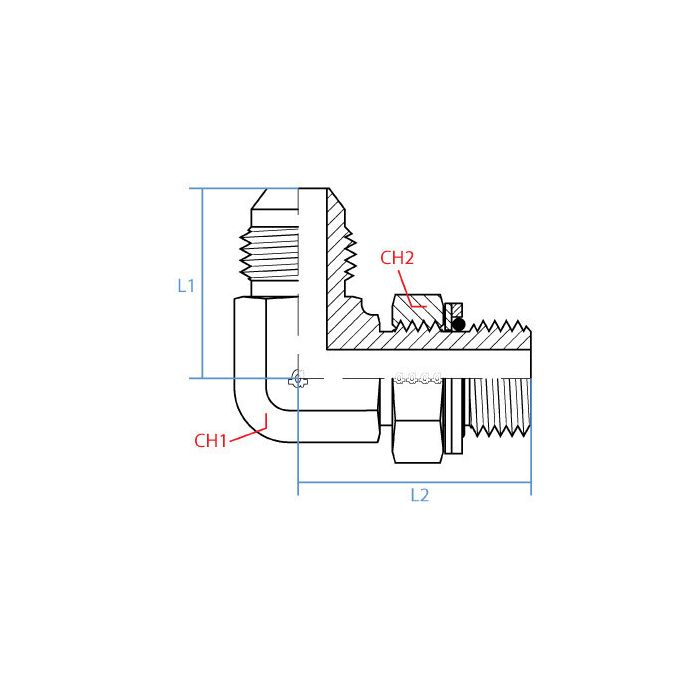

The Ss316 90° Elbow Mjic X Mmetric is manufactured by Adaptall and features a Channel 1 width of 14mm and Channel 2 width of 19mm, with an L1 length of 32.3mm and L2 length of 25.6mm. Stainless steel construction provides corrosion resistance suited to demanding fluid power environments, including those involving moisture exposure or aggressive media.

SKU: SS9069-06-14

Supplier Part Number (MPN): SS9069-06-14

Specifications

Connection Size 1 9/16 in	Connection Size 2 14 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Fitting Type 90 deg Elbow	Material Stainless Steel	Material Construction 316 Stainless Steel	Series SS9069 Series	Thread Size 9/16-18 x M14x1.5

Product Questions & Answers (1)

Question by: Merle B on Nov 11, 2025, 10:37 AM

Will this fitting hold up okay if it's exposed to the weather and some chemicals?

Answer by: Customer Support on Nov 12, 2025, 9:27 PM

Constructed from 316 stainless steel, this elbow adapter is designed to offer good corrosion resistance, making it suitable for demanding environments where moisture or harsh chemicals might be present.
