Ss316 90* Elbow Mjic X Mmetric

Description & Features

Constructed from 316 stainless steel, this 90° elbow adapter connects a 3/8" Male JIC fitting (9/16-18 UNF thread) on one side to an M16 x 1.5 Male Metric fitting on the other, making it well suited for hydraulic systems that require a right-angle transition between JIC and metric threaded connections. The stainless steel construction provides reliable corrosion resistance in demanding fluid power environments.

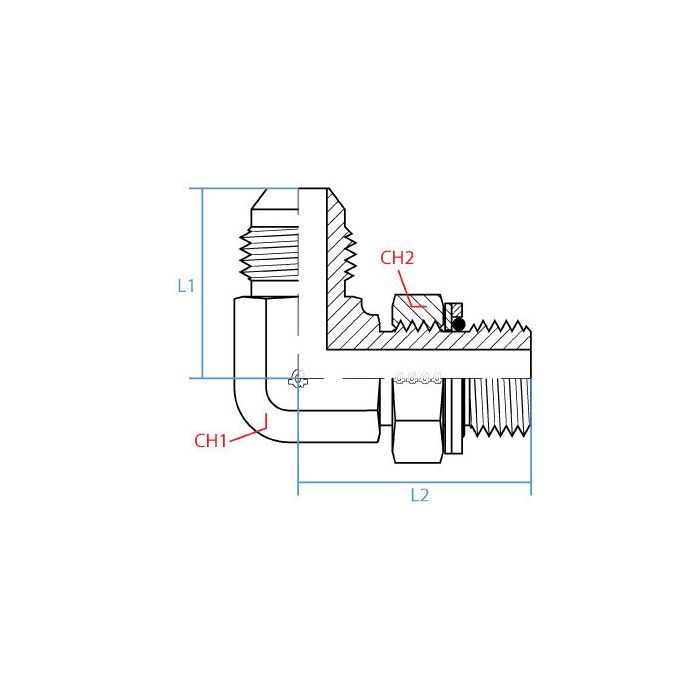

The Ss316 90° Elbow Mjic X Mmetric is an Adaptall fitting, with a CH1 wrench width of 19mm and CH2 of 22mm. The L1 length measures 36mm and L2 is 26.5mm. Both ends are male, allowing direct connection into female-ported components on each side of the assembly.

SKU: SS9069-06-16

Supplier Part Number (MPN): SS9069-06-16

Specifications

Connection Size 1 9/16 in	Connection Size 2 S16	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Fitting Type 90 deg Elbow	Hex Size 19 x 22 mm	Material Stainless Steel	Material Construction 316 Stainless Steel	Series SS9069 Series	Thread Size 9/16-18 x M16x1.5

Product Questions & Answers (1)

Question by: Kent W on Mar 18, 2026, 10:23 AM

trying to swap a straight adapter out for a 90, is this one male jic to male metric?

Answer by: Customer Support on Mar 20, 2026, 6:31 AM

Built as a right angle adapter, it has a 3/8 inch Male JIC on one end with 9/16-18 UNF threads, and a Male Metric M16 x 1.5 on the other. Both sides are male, so it’s meant to screw into female ports or female swivel ends on each side.
