Stainless Mjic X Mm Standpipe

Description & Features

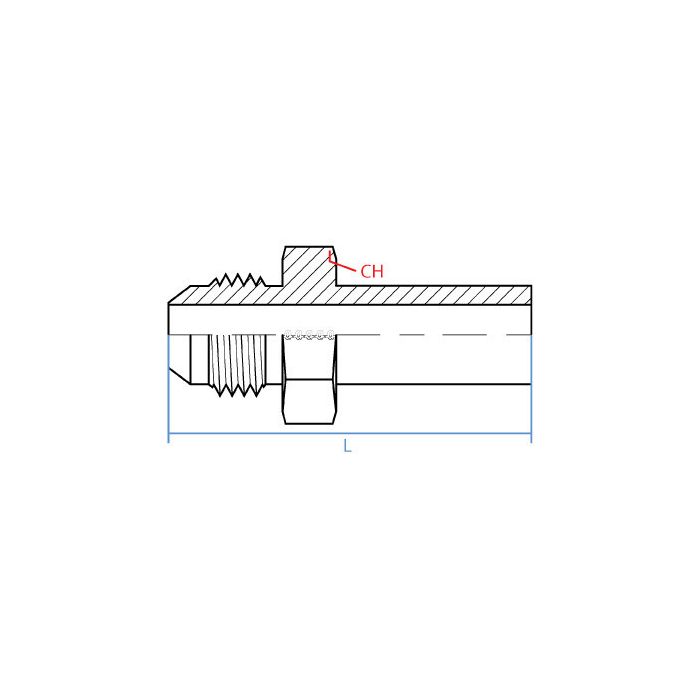

Crafted from durable stainless steel, this straight standpipe features a robust design ideal for industrial applications. With a precise 22mm wrench width and a total length of 47.5mm, it ensures a secure and reliable connection. The standpipe incorporates a 3/4-16 UNF male JIC fitting on one side and a 15mm female DIN standpipe fitting on the other, making it highly compatible with various hydraulic systems. Its stainless construction offers excellent resistance to corrosion, making it suitable for challenging environments.

This Stainless Mjic X Mm Standpipe is a versatile component designed to meet high standards in hydraulic and industrial systems. The combination of JIC and DIN connections enhances its adaptability, providing seamless integration with diverse configurations. Its compact and efficient design ensures quick installation and reliable performance under demanding conditions.

SKU: SS9200-08-15

Supplier Part Number (MPN): SS9200-08-15

Alternate Part Numbers: C1FP70

Specifications

CH Width 22mm	L Length 47.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 15mm	Side 2 Gender F	Side 2 Size 15mm	Side 2 Type Din Standpipe	Alternate Part Numbers Alternate Part Number C1FP70	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9200-08-15	Product Weight 0.14 lbs

Product Questions & Answers (1)

Question by: Vince G on Sep 15, 2025, 8:34 AM

trying to replace a standpipe fitting, is this one 3/4-16 UNF male JIC on one end and 15mm female DIN on the other?

Answer by: Customer Support on Sep 16, 2025, 9:14 PM

On the JIC side you are getting a 3/4-16 UNF male connection, listed as a 1/2 inch JIC size. The other end is a 15mm female DIN standpipe connection, so it matches that JIC to DIN standpipe combination.
