Ss316 Male Metric X Female Npt

Description & Features

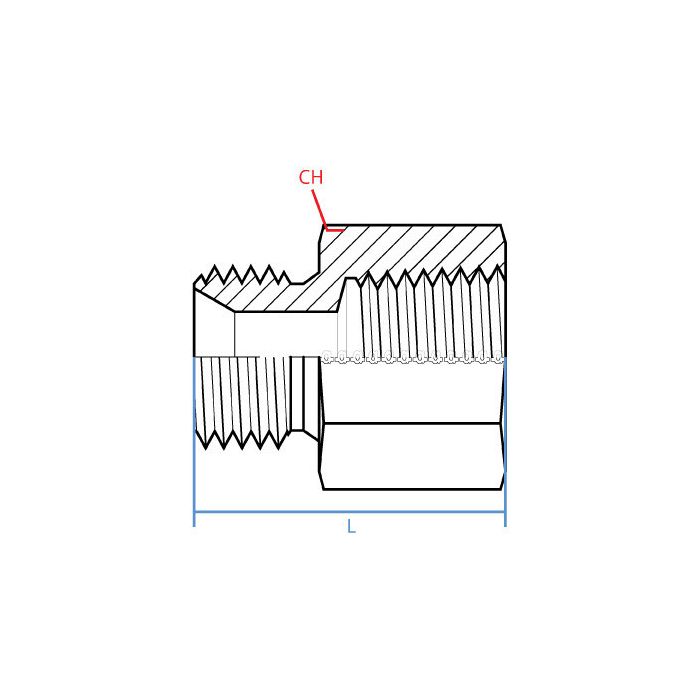

This straight Adaptall fitting is made from stainless steel 316. It adapts a male metric DIN tube to a female NPT connection.

The Adaptall fitting connects to a M14 x 1.5 male DIN tube on one side (L08 size) and a 1/4" female NPT thread on the other (1/4"-18 NPTF thread size).

SKU: SS9235-14-L08-04

Supplier Part Number (MPN): SS9235-14-L08-04

Specifications

Additional Information Light-Duty	Connection Size 1 8 mm	Connection Size 2 1/4 in	Connection Type FNPT, Male Metric	Connection Type 1 Male Metric	Connection Type 2 FNPT	Dimension Standards ANSI B1.20.3, DIN 2353	Fitting Type Adapter	Material Stainless Steel	Material Construction 316 Stainless Steel	Series SS9235 Series	Thread Size 1/4-18, M14x1.5

Product Questions & Answers (2)

Question by: Gene T on Aug 13, 2025, 7:08 PM

fitting is stainless steel 316, but what thread type is on the NPT end exactly? need to know if it's NPTF or just standard NPT before I order.

Answer by: Customer Support on Aug 15, 2025, 6:22 AM

The female NPT side uses a 1/4"-18 NPTF thread. NPTF is a dry-seal thread form, so it's designed to hold pressure without relying solely on sealant. That said, most folks still apply thread tape or sealant as a precaution depending on the application.

Question by: Harold L on Jul 8, 2025, 9:02 PM

Just want to make sure this fits... I got a metric DIN tube that's M14 x 1.5, and need to hook it up to a 1/4" female NPT. Will this do the trick?

Answer by: Customer Support on Jul 10, 2025, 6:18 AM

For that setup, yes, this Adaptall fitting should work perfectly. It's designed to connect an M14 x 1.5 male DIN tube to a 1/4" female NPT thread.
