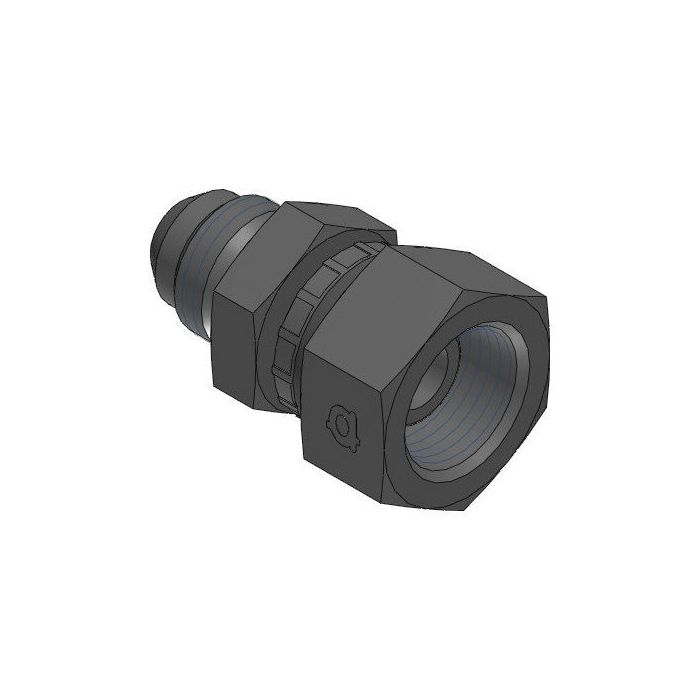

Ss316 Mjic X Fbspp Swivel

Ask A Question

Description & Features

Crafted from durable stainless steel, the Ss316 Mjic X Fbspp Swivel is specifically designed for reliable fluid connections in industrial applications. This straight swivel adapter features a 9/16 - 18 UNF male JIC connection on one side and a G 3/8 - 19 female BSPP connection on the other. Its robust construction ensures excellent resistance to corrosion, making it ideal for use in harsh environments. With a compact length of 39.3mm, it integrates seamlessly into existing hydraulic systems.

The precision-engineered dimensions, including a CH1 width of 19mm and CH2 width of 22mm, provide a secure fit and easy installation. Manufactured by Adaptall, this swivel adapter is suitable for a variety of heavy-duty applications, where dependable performance is a must. The use of premium-grade stainless steel ensures long-term durability and reliability under demanding operational conditions.

SKU: SS9240-06-06

Supplier Part Number (MPN): SS9240-06-06

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female BSP Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female BSPP Swivel
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
38 mm L
Fitting Type
Adapter
Hex Size
19 x 22 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9240 Series
Thread Size
9/16-18 x 3/8-19

Product Questions & Answers (3)

Question by: Keith G on Aug 29, 2025, 3:45 PM
got a line running BSPP on one end and JIC on the other, this swivel gonna bridge that gap without needing extra fittings in between?
Answer by: Customer Support on Aug 31, 2025, 6:41 AM
That's what it's built for. One side is a 9/16-18 UNF male JIC, the other is a G 3/8-19 female BSPP, so it connects those two thread standards directly. Both sides are 3/8" size, and the straight profile keeps things clean without adding unnecessary bulk. At 39.3mm long it's compact enough to fit into tight hydraulic connections runs without a lot of fuss.
Question by: Dean W on Jun 15, 2025, 9:01 PM
got a hose end that’s 9/16-18 UNF JIC male, will this swivel mate up with it?
Answer by: Customer Support on Jun 17, 2025, 6:57 AM
On the JIC side, you are looking at a 9/16 - 18 UNF male JIC connection (3/8 inch size). The other end of the adapter is a G 3/8 - 19 female BSPP swivel, so it is meant to join a JIC connection to a BSPP connection.
Question by: Keith A on Apr 17, 2025, 11:01 AM
Will this swivel work with regular hydraulic fluid?
Answer by: Customer Support on Apr 19, 2025, 10:28 AM
Crafted from stainless steel, this swivel is well-suited for hydraulic applications where corrosion resistance is important.
