Ss316 Mjic X Fbspp Swivel

Description & Features

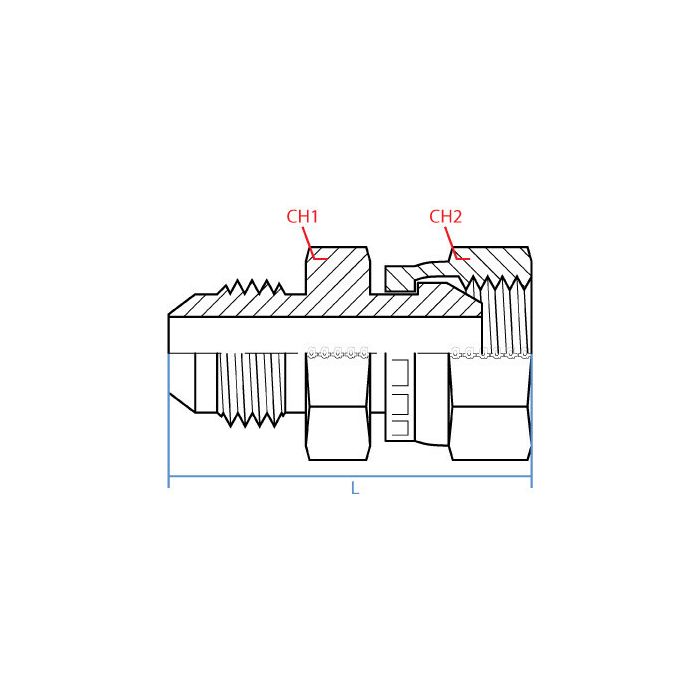

Constructed from 316 stainless steel, this straight swivel adapter connects a 1/2" male JIC fitting (3/4–16 UNF thread) on one end to a 1/2" female BSPP port (G 1/2–14 thread) on the other. The swivel design allows the female BSPP end to rotate during installation, reducing torsional stress on connected lines and simplifying assembly in tight or fixed-port configurations.

The SS9240-08-08 is an Adaptall product, measuring 46.6 mm in overall length with 27 mm wrench flats on both ends. Stainless steel construction makes it well suited for hydraulic systems where corrosion resistance is a priority, including marine, food-grade, and chemical-handling environments. The straight configuration suits direct port-to-port connections where no angular offset is required.

SKU: SS9240-08-08

Supplier Part Number (MPN): SS9240-08-08

Specifications

CH1 Width 27mm	CH2 Width 27mm	L Length 46.6mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9240-08-08	Product Weight 0.20 lbs

Product Questions & Answers (3)

Question by: Johnny R on Nov 13, 2025, 4:43 PM

Got a piece of equipment with a G 1/2-14 port on it and need to tie into a JIC line, this straight swivel gonna work for that?

Answer by: Customer Support on Nov 15, 2025, 1:23 PM

That's the kind of situation this fitting handles. One end is a 1/2" male JIC on a 3/4-16 UNF thread, and the other is a 1/2" female BSPP with a G 1/2-14 thread. The swivel on the BSPP end lets it rotate during installation so you're not putting twist into your hydraulic line trying to make it seat right. Straight configuration, no angle, so it works best when your port and your line are lined up direct.

Question by: Janice G on May 10, 2025, 5:42 PM

Can this swivel fitting handle hydraulic fluid okay, or is it more for something else?

Answer by: Customer Support on May 12, 2025, 6:01 AM

This fitting is well-suited for hydraulic systems, especially where you need good corrosion resistance. The stainless steel construction makes it compatible with hydraulic fluid, plus marine, food-grade, and chemical-handling environments.

Question by: Gary C on Oct 29, 2025, 12:21 PM

got a hose with a 1/2 JIC male on it, will this screw right into a G 1/2 BSPP female port without any goofy adapters

Answer by: Customer Support on Oct 31, 2025, 11:56 AM

For a straight thread match-up, it fits a 1/2 inch male JIC on one side with 3/4 to 16 UNF threads, and a 1/2 inch female BSPP on the other with G 1/2 to 14 threads. It is made to bridge those two connection types directly.
