Ss316 Mjic X Fbspp Swivel

Description & Features

This straight stainless steel Adaptall fitting features a male JIC (Joint Industry Council) connection on one side and a female Bspp (British Standard Parallel Pipe) swivel on the other. The JIC side has a 1" size with 1-5/16 - 12 UN callout, while the Bspp swivel side measures 1" with a G 1 - 11 callout.

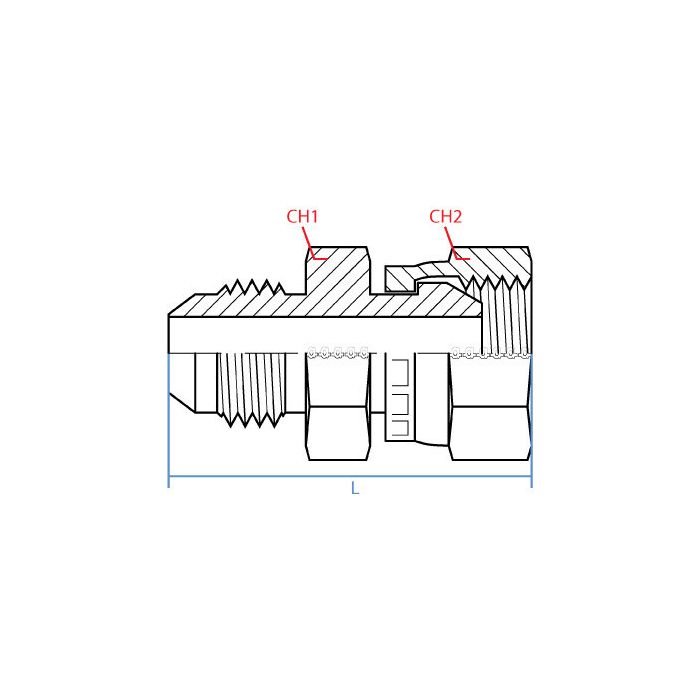

The Ss316 Mjic X Fbspp Swivel is constructed from stainless steel, offering excellent corrosion resistance. The wrench flats measure 38mm on one side and 41mm on the other. The overall length (L) of the fitting is 62.5mm.

SKU: SS9240-16-16

Supplier Part Number (MPN): SS9240-16-16

Specifications

CH1 Width 38mm	CH2 Width 41mm	L Length 62.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout G 1 - 11	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9240-16-16	Product Weight 0.65 lbs

Product Questions & Answers (2)

Question by: Randy W on Jan 16, 2026, 9:51 AM

fitting's got a 1" JIC on one end and I got a 1" BSPP port on my equipment, that thread callout on the BSPP side, is it a straight thread or tapered?

Answer by: Customer Support on Jan 18, 2026, 6:01 AM

BSPP runs parallel, not tapered. That's what the "P" at the end stands for, and the G 1 - 11 callout on this fitting confirms it's a straight parallel thread. If your equipment port is also BSPP, you're working with the right connection type. The swivel feature on that female end also gives you a little rotational freedom during installation, which helps a lot when you're trying to avoid twisting a hose or line during makeup.

Question by: Jimmy C on Jun 22, 2025, 11:31 AM

trying to match up fittings here, is this one a 1 inch JIC male to a 1 inch BSPP female swivel?

Answer by: Customer Support on Jun 24, 2025, 6:06 AM

On the JIC side you are getting a 1 inch male with a 1-5/16 - 12 UN thread callout, and the other end is a 1 inch female BSPP swivel with a G 1 - 11 callout.
