Ss316 Mjic X Male Din 2353L

Description & Features

Constructed from 316 stainless steel, this straight hydraulic adapter connects a 3/8" Male JIC (9/16-18 UNF) fitting on one end to an M18 x 1.5 Male Din 2353L (L12) tube fitting on the other. The stainless steel construction makes it well suited for hydraulic systems where corrosion resistance is a priority, including applications involving moisture exposure or aggressive media.

The Ss316 Mjic X Male Din 2353L is an Adaptall fitting with a straight configuration, an overall length of 38mm, and a wrench width of 24mm. It bridges JIC and DIN 2353 light series tube connections in a compact, single-piece body without the need for additional adapters or intermediate fittings.

SKU: SS9605-06-L12-18

Supplier Part Number (MPN): SS9605-06-L12-18

Specifications

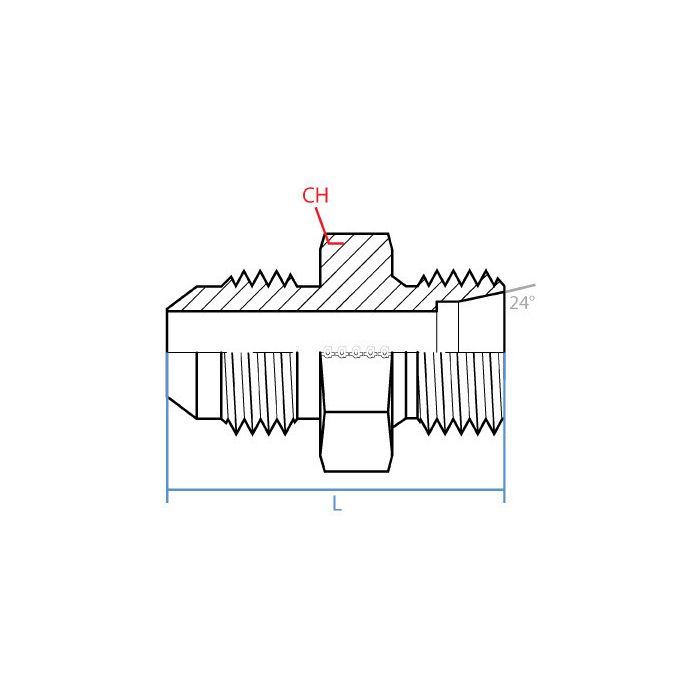

CH Width 24mm	L Length 38mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9605-06-L12-18	Product Weight 0.14 lbs

Product Questions & Answers (2)

Question by: Dale T on Sep 25, 2025, 3:19 PM

got a 3/8 JIC line on a hydraulic system and need to tie into a DIN 2353 light series port sized at M18 x 1.5 -- this adapter do that in one piece or am I gonna need something extra?

Answer by: Customer Support on Sep 26, 2025, 9:06 PM

One piece is all you need here. One end is a 3/8" Male JIC with a 9/16-18 UNF thread, the other is an M18 x 1.5 Male DIN 2353L fitting, which is the light series L12. Straight configuration, no intermediate hardware required. At 38mm overall length it stays pretty compact in tight hydraulic connections situations.

Question by: Dwight A on Jul 23, 2025, 9:15 PM

Will this here fitting hold up if I'm usin' it outside where it gets rained on a lot?

Answer by: Customer Support on Jul 25, 2025, 1:04 PM

Because it's made from 316 stainless steel, this adapter offers good corrosion resistance, so moisture shouldn't be a problem.
