Ss316 Mjic X Male Din 2353L

Description & Features

This stainless steel Adaptall fitting features a MJIC (Mechanical Joint, International Standard) to Male DIN 2353 Light connection. It adapts a 1/2" JIC male end with a 3/4 - 16 UNF thread to a M22 X 1.5 Male DIN Tube L15, facilitating connections between different hydraulic components.

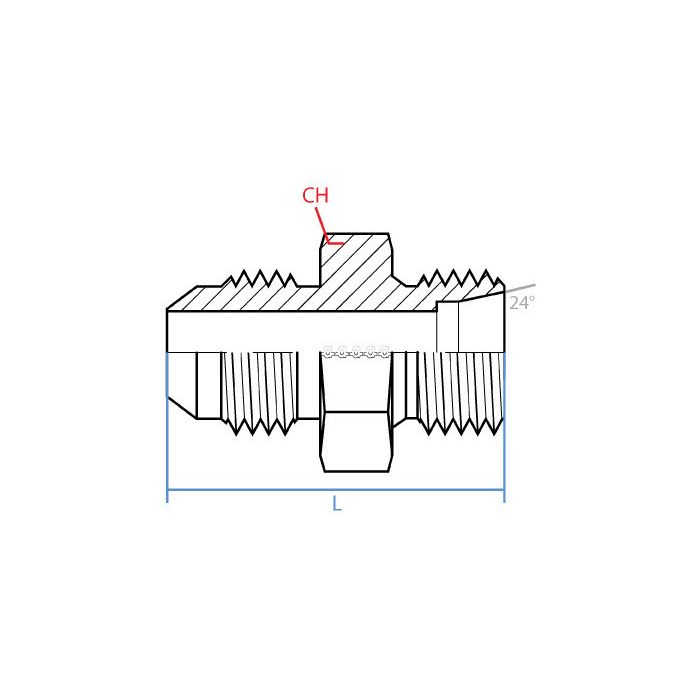

The Ss316 Mjic X Male Din 2353L fitting has a straight shape and a wrench flat size of 27mm. Its overall length is 42.8mm, designed for a secure and reliable connection in various hydraulic applications.

SKU: SS9605-08-L15-22

Supplier Part Number (MPN): SS9605-08-L15-22

Specifications

CH Width 27mm	L Length 42.8mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9605-08-L15-22	Product Weight 0.20 lbs

Product Questions & Answers (3)

Question by: Neal B on Sep 11, 2025, 12:11 PM

fitting's 42.8mm long and I got limited space between components, that dimension is the full end-to-end length, right?

Answer by: Customer Support on Sep 13, 2025, 6:44 AM

Yes, 42.8mm is the overall length of the fitting from end to end. That's the number to work with when you're checking clearances. The wrench flat runs 27mm across, so factor that in too if you're tight on space around the hex when torquing it down.

Question by: Randy K on Jun 3, 2025, 4:47 PM

got a hose end thats 1/2 jic male with 3/4-16 threads. will this adapt it over to a m22x1.5 din tube l15?

Answer by: Customer Support on Jun 5, 2025, 1:41 PM

For tying those two standards together, it adapts a 1/2 inch JIC male end with 3/4 - 16 UNF threads on one side to a M22 x 1.5 male DIN 2353 Light connection for DIN tube size L15 on the other.

Question by: Lyle H on Dec 24, 2025, 3:17 PM

Will this here fitting work to connect a JIC to a DIN setup?

Answer by: Customer Support on Dec 25, 2025, 8:45 PM

This Adaptall fitting adapts a 1/2" JIC male end with a 3/4 - 16 UNF thread to a M22 X 1.5 Male DIN Tube L15, so yes, it's made for connecting those types of setups.
