Stainless Mjic X Male Din2353S

Description & Features

Crafted from durable stainless steel, this fitting ensures reliable performance in demanding environments. The Stainless Mjic X Male Din2353S features a straight shape, providing a seamless connection between hydraulic systems. It incorporates a 3/4 - 16 UNF male JIC on one side, compatible with 1/2" fittings, and a M24 x 1.5 male Din Tube on the opposite side, making it versatile for various industrial applications.

With an Adaptall width of 32mm and a length of 42.8mm, this fitting is designed for precision and strength. The stainless steel construction enhances its resistance to corrosion, making it suitable for use in harsh conditions. This product is part of the Adaptall brand, known for its quality and reliability in hydraulic connections.

SKU: SS9606-08-S16-24

Supplier Part Number (MPN): SS9606-08-S16-24

Specifications

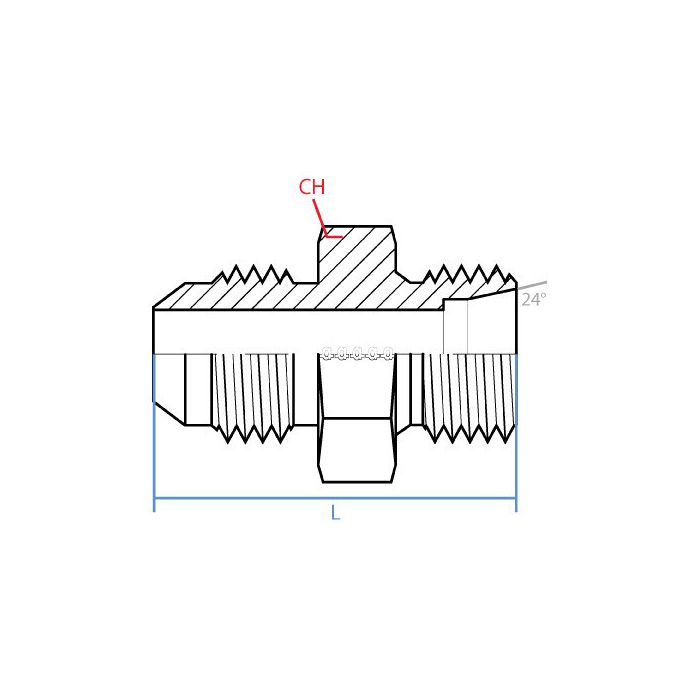

CH Width 32mm	L Length 42.8mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9606-08-S16-24	Product Weight 0.30 lbs

Product Questions & Answers (2)

Question by: Rhonda P on Aug 29, 2025, 5:28 PM

Got a hydraulic line running M24 x 1.5 DIN tube fittings on one end and JIC on the other, does this adapter cross those two over in a straight shot?

Answer by: Customer Support on Aug 31, 2025, 6:20 AM

That's what this one does. One side is a 3/4-16 UNF male JIC, sized for 1/2" fittings, and the other is an M24 x 1.5 male DIN tube connection. Both ends are male, the shape is straight through, so there's no offset or angle to account for. If your line needs to bridge those two thread standards without any bends, this fitting handles it clean.

Question by: Clint M on May 7, 2025, 8:44 AM

got a hose end that’s 3/4-16 UNF JIC male, what’s on the other side of this adapter?

Answer by: Customer Support on May 8, 2025, 9:27 PM

On the opposite end, it has a male DIN 2353 tube connection with an M24 x 1.5 thread, listed as size S16.
