Stainless Mjic X Male Din2353S

Description & Features

Constructed from stainless steel, this straight hydraulic adapter connects a 3/4" Male JIC (1-1/16-12 UN thread) on one end to a Male DIN 2353 tube fitting (M36 x 2.0, S25 series) on the other. The Stainless Mjic X Male Din2353S is suited for hydraulic systems where corrosion resistance is a priority, including marine, food-grade, and chemically aggressive environments.

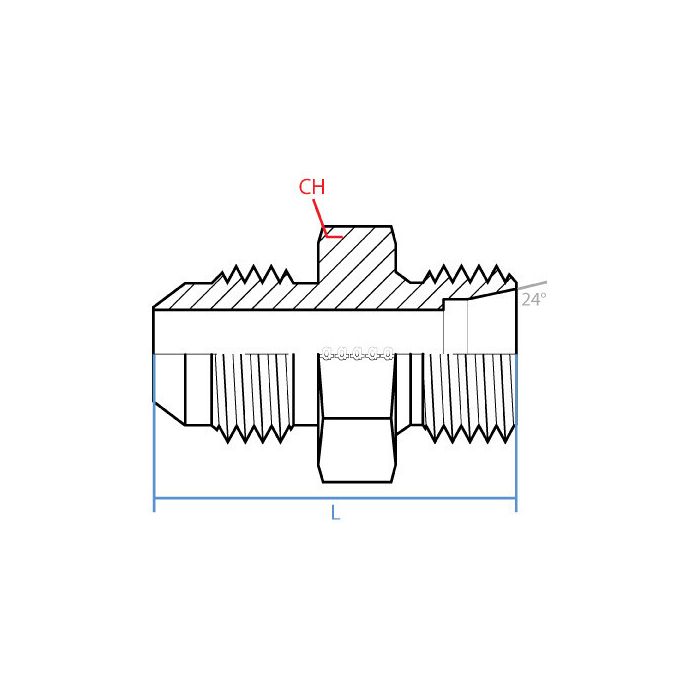

With an overall length of 53.2mm and a wrench-across width of 41mm, the adapter is compact enough for space-constrained installations while providing reliable thread engagement on both sides. Stainless steel construction supports use in high-moisture and washdown-intensive applications where carbon steel fittings would be unsuitable.

SKU: SS9606-12-S25-36

Supplier Part Number (MPN): SS9606-12-S25-36

Specifications

CH Width 41mm	L Length 53.2mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9606-12-S25-36	Product Weight 0.50 lbs

Product Questions & Answers (2)

Question by: Stan E on Sep 27, 2025, 10:32 AM

got a hose end that’s 3/4 male JIC, what does the other side of this adapter actually thread into?

Answer by: Customer Support on Sep 28, 2025, 6:22 PM

On the opposite end, it has a male DIN 2353 tube fitting thread, M36 x 2.0 in the S25 series. So it bridges a 3/4 inch male JIC (1-1/16-12 UN) to a male DIN 2353 M36 x 2.0 connection.

Question by: Kurt P on Dec 25, 2025, 7:04 PM

Can this handle, like, being splashed with saltwater all the time? I'm rigging up a system on my boat.

Answer by: Customer Support on Dec 27, 2025, 6:58 AM

Stainless steel construction makes this adapter suitable for high-moisture and washdown-intensive applications, including marine environments where corrosion resistance is a priority.
