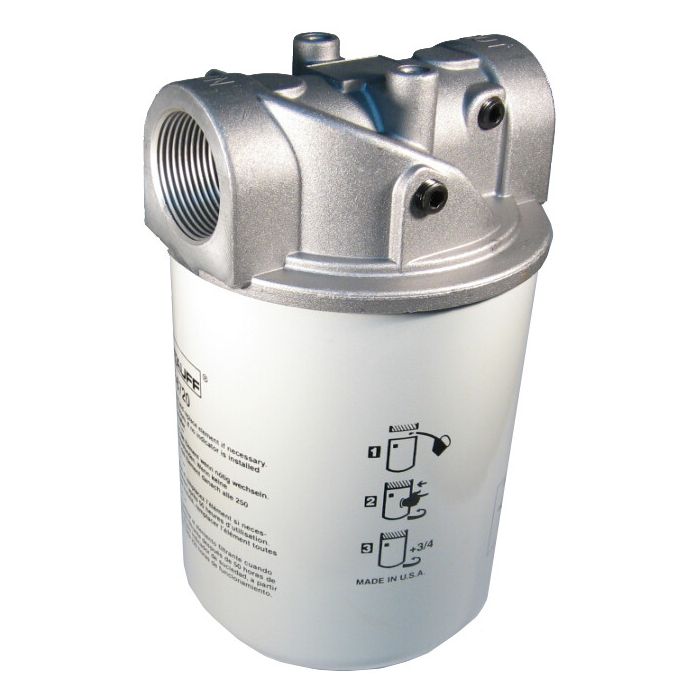

SSF120/160 Series Spin-On Suction / Return Filter, SAE-20 Ports, 6.63 inch 3 Micron Nominal Micro Glass Element, 25.00 PSI Bypass Spring

Designed for low pressure return line use on mobile and industrial equipment, this spin-on filter from Stauff Corporation features a lightweight die-cast aluminum head and Buna-N seals compatible with petroleum-based hydraulic fluids. A 25 PSI bypass spring is installed as standard, and the unit can also serve as a suction filter when fitted with a 3 or 5 PSI bypass spring instead.

The SSF120/160 Series Spin-On Suction / Return Filter ships with SAE-20 ports, a 6.63 inch, 3 micron nominal micro glass element, and supports flow rates up to 60 GPM at a maximum operating pressure of 200 PSI. The throw-away metal spin-on canister simplifies element replacement, and all four indicator ports are machined and plugged, with optional visual and electrical condition indicators available. Temperature compatibility spans -25°F to 212°F.

SKU: SSF160254SF6703K

Supplier Part Number (MPN): SSF160254SF6703K

Alternate Part Numbers: SSF160254/SF6703-K
