Stainless 316 Morb X Mbspp

Description & Features

Constructed from 316 stainless steel, this straight hydraulic adapter connects a 1/4" male ORB-SAE port (7/16-20 UNF thread) on one end to a 1/4" male BSPP port (G 1/4-19 thread) on the other. The Stainless 316 Morb X Mbspp is well suited for hydraulic and fluid systems where corrosion resistance is a priority, particularly in marine, chemical processing, or washdown environments where carbon steel fittings would be unsuitable.

Manufactured by Adaptall, the fitting measures 27.5mm in length with a 19mm across-flats width, making it a compact inline adapter for tight installation areas. The straight configuration simplifies routing between ORB-SAE and BSPP-threaded components without requiring angled fittings or additional adapters.

SKU: SS9006-04-04

Supplier Part Number (MPN): SS9006-04-04

Specifications

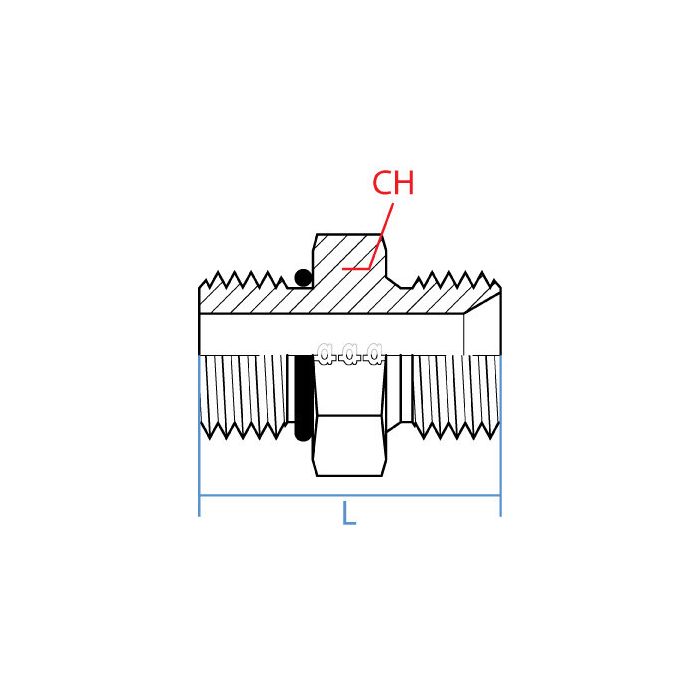

CH Width 19mm	L Length 27.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orb-Sae	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9006-04-04	Product Weight 0.10 lbs

Product Questions & Answers (2)

Question by: Daryl E on Dec 10, 2025, 6:57 AM

Got a piece of equipment with a BSPP port on it and the hydraulic line coming off the pump is ORB-SAE. this adapter gonna let me connect them straight across without having to rig up something extra?

Answer by: Customer Support on Dec 12, 2025, 7:37 AM

That's what it's built for. One end threads into a 1/4" ORB-SAE port using a 7/16-20 UNF thread, and the other end is a 1/4" male BSPP at G 1/4-19. Straight configuration means no angle, no extra adapter in the middle, just a direct inline connection between the two thread types. At 27.5mm long it stays pretty compact, so it won't cause clearance headaches in a tight spot.

Question by: Janice P on Aug 23, 2025, 5:55 PM

Just wanna make sure, this adapter fits a 1/4" male BSPP thread on one end and a 1/4" male ORB-SAE on the other, right? Don't wanna order the wrong thing again.

Answer by: Customer Support on Aug 24, 2025, 9:25 PM

That's correct. This adapter has a 1/4" male BSPP port on one side and a 1/4" male ORB-SAE port on the other, so it should work for ya.
