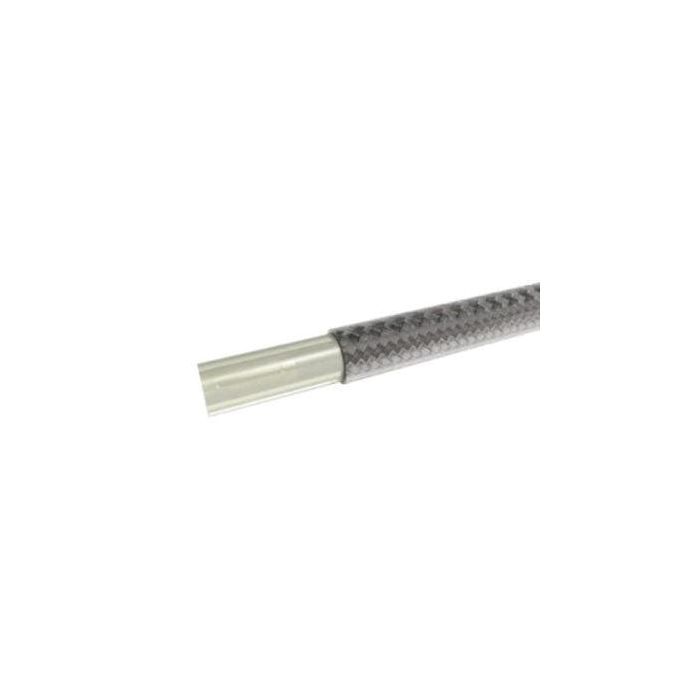

High Performance Stainless Steel Braided Brake Hose, Clear, 0.25 Inch OD, 0.13 Inch ID, Up To 3000.00 PSI

Description & Features

BRAKEQUIP's high-performance brake hose features a PVC jacket with a smooth bore PTFE tube reinforced by a 0.008" thick 304 stainless steel 4-wire braid ensuring optimal durability and reliability in demanding hydraulic brake applications.

The hose measures 0.125 inches ID and 0.25 inches OD and is capable of withstanding a maximum operating pressure of up to 3000 PSI with a burst pressure of 12000 PSI. The clear design adds a layer of visual inspection capability advantageous in critical systems settings.

Its minimum bend radius is 2 inches making it flexible for various installation requirements. The hose is compatible with BrakeQuip crimp fittings providing a secure and efficient connection.

Suitable for a wide temperature range from -100deg;F to 500deg;F making it adaptable to different environmental conditions.

MPN: C1LY99

Supplier Part Number: BQ303

Specifications

Brand
BrakeQuip®
Cover Material
PVC
For Use With
DOT 3, 4, 5 (Silicone-Based) and 5.1 Brake Fluids
grp Construction
PVC Jacket, 304 Stainless 4-Wire Braid, Thickness 0, 008 in Reinforcement, PTFE Smooth Bore Tube
Hose Color
Clear
Hose Type
Jacketed Braided Air Brake Hose
Inside Diameter
0.12 in
Reinforcement
4-Wire Braid
Tube Material
Stainless Steel

Similar Products

Model Number Hose Color Price Action
High Performance Stainless Steel Braided Brake Hose, Red, 0.25 Inch OD, 0.13 Inch ID, Up To 3000.00 PSI

BQ303RD Stainless Braided Brake Hose

Red

High Performance Stainless Steel Braided Brake Hose, Black, 0.25 Inch OD, 0.13 Inch ID, Up To 3000.00 PSI

BQ303BK Stainless Braided Brake Hose

Smoke

High Performance Stainless Steel Braided Brake Hose, No Jacket, 0.25 Inch OD, 0.13 Inch ID, Up To 3000.00 PSI

BQ301 Stainless Braided Brake Hose

High Performance Stainless Steel Braided Brake Hose, Blue, 0.25 Inch OD, 0.13 Inch ID, Up To 3000.00 PSI

BQ303BL Stainless Braided Brake Hose

Blue

Product Questions & Answers (1)

Question by: Jimmy W on Oct 9, 2025, 6:01 AM
What's the highest heat this hose can handle without failing?
Answer by: Customer Support on Oct 10, 2025, 2:43 PM
This hose is rated to withstand temperatures from -100°F all the way up to 500°F.
