High Performance Stainless Steel Braided Brake Hose, Blue, 0.25 Inch OD, 0.13 Inch ID, Up To 3000.00 PSI

Description & Features

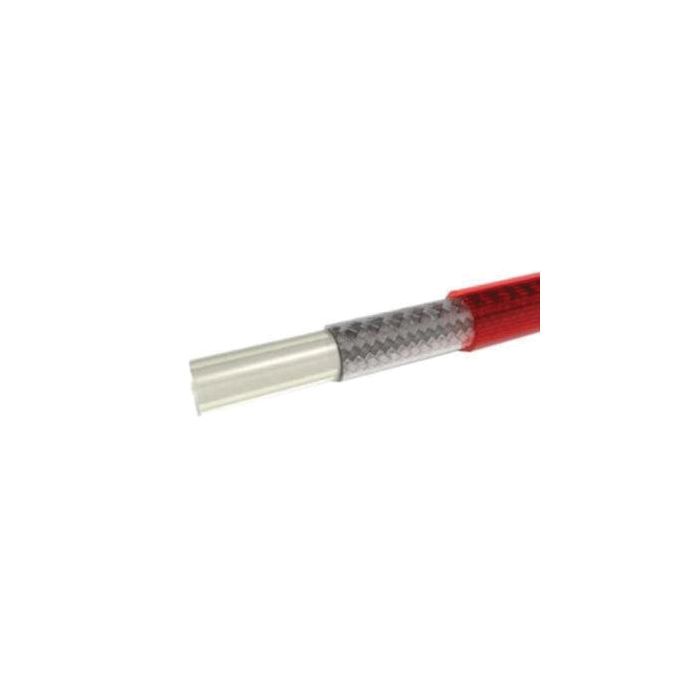

This durable brake hose features a robust stainless steel 4-wire braid reinforcement with a smooth bore PTFE tube which ensures high performance under rigorous conditions. The hose has a 0.25 inch outside diameter and a 0.13 inch inside diameter making it suitable for hydraulic brake systems.

With a PVC jacket for added protection this blue hose can withstand a maximum operating pressure of up to 3000 PSI and has a burst pressure of 12000 PSI. It also offers a wide temperature range from -100deg;F to 500deg;F providing reliability in diverse environments. The minimum bend radius of 2 inches ensures flexibility while maintaining strength.

Designed for specialized applications it is equipped with BrakeQuip crimp fittings to guarantee secure connections. This high-performance hose not only meets hydraulic brake hose requirements but also excels in various demanding industrial applications.

MPN: C1LZ12

Supplier Part Number: BQ303BL

Specifications

Burst Pressure 12000	Color Blue	Brand Brakequip, LLC	Brand Brakequip	Pack Size 12.00	UOM FT	Hose I.D. 0.13	Hose O.D. 0.25	Maximum Operating Pressure 3000	Minimum Bend Radius 2	Minimum Bend Radius 2	O.D. Including Jacket 0.30	Supplier Part Number BQ303BL	Alternate Part Numbers Alternate Part Number C1LZ12, Alternate Part Number MI-08748243, Alternate Part Number MINO-11456X10038	Product Weight 0.18 lbs

Similar Products

Model Number	Hose I.D.	Hose O.D.	O.D. Including Jacket	Maximum Operating Pressure	Burst Pressure	Minimum Bend Radius	Color
BQ301 Stainless Braided Brake Hose	0.125	0.25	0.25	3000	12000	2	No Jacket
BQ303 Stainless Braided Brake Hose	0.125	0.25	0.295	3000	12000	2	Clear
BQ303BK Stainless Braided Brake Hose	0.125	0.25	0.295	3000	12000	2	Black
BQ303RD Stainless Braided Brake Hose	0.125	0.25	0.295	3000	12000	2	Red

Product Questions & Answers (3)

Question by: Earl T on Oct 8, 2025, 5:18 PM

got a tight bend to make, what’s the smallest radius this blue BrakeQuip hose will handle without kinking

Answer by: Customer Support on Oct 10, 2025, 6:28 AM

For routing, the minimum bend radius is 2 inches. Staying at or above that bend helps keep the PTFE smooth-bore tube and the 304 stainless 4-wire braid from being forced into a kinked shape.

Question by: Shawn C on Dec 18, 2025, 1:30 PM

What kind of fittings work with this hose? Need to make sure I get the right ones.

Answer by: Customer Support on Dec 20, 2025, 1:24 PM

BrakeQuip crimp fittings are specifically designed for secure connections with this hose.

Question by: Rex B on Feb 13, 2026, 4:26 PM

what's the temp range on this hose? running it on a system that sees some pretty cold mornings and hot afternoons both

Answer by: Customer Support on Feb 15, 2026, 6:45 AM

Rated from -100°F up to 500°F, so wide swings between cold starts and high operating temps aren't going to be a problem. The PTFE smooth bore tube and stainless steel braid hold up well across that full range without softening or getting brittle at the extremes.
