High Performance Stainless Steel Braided Brake Hose, Red, 0.25 Inch OD, 0.13 Inch ID, Up To 3000.00 PSI

Description & Features

The High Performance Stainless Steel Braided Brake Hose red is meticulously designed for demanding hydraulic brake applications. Featuring a 0.13 inch internal diameter and 0.25 inch outer diameter it guarantees reliable performance even under pressures up to 3000 PSI.

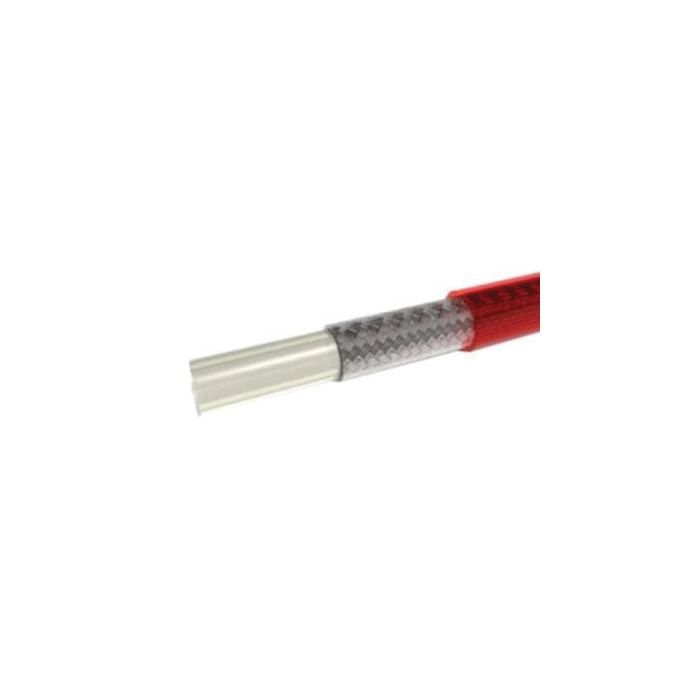

This brake hose boasts a robust construction with a PVC jacket and a 304 stainless 4-wire braid reinforcement with a 0.008" thickness. The PTFE-smooth bore tube ensures optimal fluid compatibility while the red color adds a distinct visual cue for easy identification. The minimum bend radius of 2 inches further adds to its flexibility making it ideal for tight spaces.

Operating efficiently within a wide temperature range of -100deg;F to 500deg;F this hose performs consistently across various environmental conditions. The burst pressure is rated at 12000 PSI providing an extra margin of safety.

Fitted with BrakeQuip crimp fittings this hose is suited for professional-grade hydraulic brake systems. It is an essential component for professionals seeking durable and high-performance solutions.

Supplier Part Number: BQ303RD

Specifications

Burst Pressure 12000	Color Red	Brand Brakequip, LLC	Brand Brakequip	Pack Size 12.00	UOM FT	Hose I.D. 0.13	Hose O.D. 0.25	Maximum Operating Pressure 3000	Minimum Bend Radius 2	Minimum Bend Radius 2	O.D. Including Jacket 0.30	Supplier Part Number BQ303RD	Alternate Part Numbers Alternate Part Number C1LZ13, Alternate Part Number MI-08748244, Alternate Part Number MINO-11456X10039	Product Weight 0.18 lbs

Similar Products

Model Number	Hose I.D.	Hose O.D.	O.D. Including Jacket	Maximum Operating Pressure	Burst Pressure	Minimum Bend Radius	Color
BQ301 Stainless Braided Brake Hose	0.125	0.25	0.25	3000	12000	2	No Jacket
BQ303 Stainless Braided Brake Hose	0.125	0.25	0.295	3000	12000	2	Clear
BQ303BK Stainless Braided Brake Hose	0.125	0.25	0.295	3000	12000	2	Black
BQ303BL Stainless Braided Brake Hose	0.125	0.25	0.295	3000	12000	2	Blue

Product Questions & Answers (2)

Question by: Darryl C on Jan 15, 2026, 6:20 AM

Can this red brake hose handle the heat from the engine?

Answer by: Customer Support on Jan 17, 2026, 6:31 AM

With a temperature range of -100°F to 500°F, this hose is designed to perform consistently across a wide range of environmental conditions, including engine bay heat.

Question by: Cindy S on Jan 21, 2026, 6:07 AM

What kind of temps can this hose hold up in? Got an application that sees both real cold winters and pretty hot summers.

Answer by: Customer Support on Jan 22, 2026, 3:44 PM

Rated from -100°F all the way up to 500°F, so seasonal swings aren't going to be a problem. Whether you're dealing with bitter cold starts or heat soaking in a tight engine bay, the operating range covers it well on both ends.
