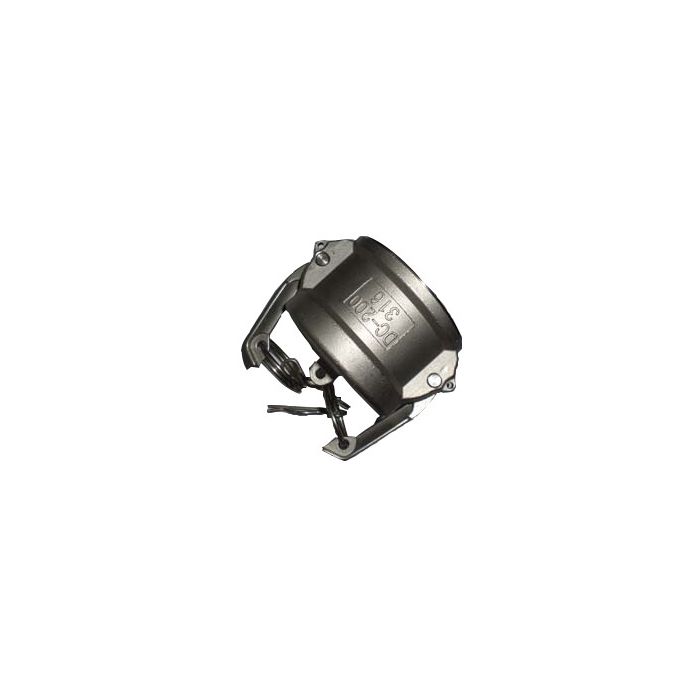

Stainless Steel Cam & Groove Adapter, 1-1/2 Inch Dust Cap

Description & Features

Constructed entirely from 316 stainless steel, body, cam levers, pins, rings, and safety clips, this 1-1/2 inch Stainless Steel Cam & Groove Adapter, 1-1/2 Inch Dust Cap provides reliable corrosion resistance in demanding liquid transfer applications. The Buna-N seal is included as standard, and a safety clip feature prevents accidental uncoupling during use.

Rated to 150 PSI for sizes up to 4 inches, this fitting conforms to standard A-A-59326 (superseding Mil-C-27487F) and DIN 2828, making it interchangeable with cam and groove products from other manufacturers built to the same standard. Coupling and uncoupling require only normal hand pressure, no tools needed. Designed for liquid service only; not suitable for compressed air or steam.

SKU: SSDC-150

Supplier Part Number (MPN): SSDC-150

Alternate Part Numbers: C1MP32

Specifications

Brand Sunrise	Connection Size 1 1-1/2 in	Connection Type Type DC	Connection Type 1 Type DC	Dimension Standards AA-59326, DIN 2828	Fitting Type Dust Cap	Material Stainless Steel	Material Construction 316 Stainless Steel	Seal Material Buna-N	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Features	Seal Material
SSDC-100 Stainless Cam & Groove Cap	1	Safety Clip	Buna-N
SSDC-200 Stainless Cam & Groove Cap	2	Safety Clip	Buna-N
SSDC-300 Stainless Cam & Groove Cap	3	Safety Clip	Buna-N
SSDC-400 Stainless Cam & Groove Cap	4	Safety Clip	Buna-N
SSDC-600 Stainless Cam & Groove Cap	6	Safety Clip	Buna-N

Product Questions & Answers (2)

Question by: Janice A on Mar 11, 2026, 3:48 PM

got a 1-1/2 camlock setup already, will this dust cap swap in with other brands or is it picky

Answer by: Customer Support on Mar 13, 2026, 6:30 AM

Built to A-A-59326 (which replaced Mil-C-27487F) and DIN 2828, it is meant to interchange with other cam and groove fittings made to those same standards in the 1-1/2 inch size.

Question by: Vince W on Mar 12, 2026, 5:07 PM

Will this cap fit any standard cam lock fitting of the same size?

Answer by: Customer Support on Mar 14, 2026, 2:24 PM

It will. This cap is made to the A-A-59326 standard (which used to be Mil-C-27487F) as well as DIN 2828, so it's interchangeable with any other cam and groove fitting made to those specs. Just make sure they're both 1 1/2 inch.
