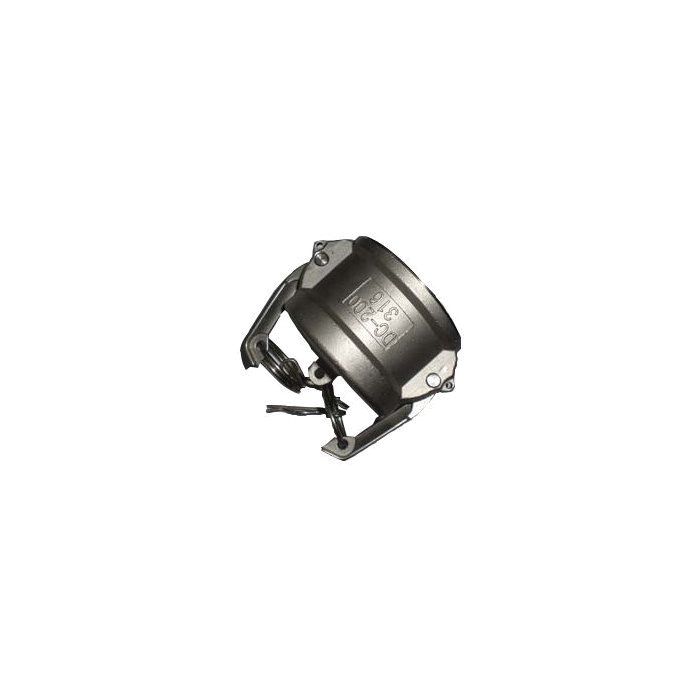

Stainless Steel Cam & Groove Adapter, 6 Inch Dust Cap

Description & Features

This stainless steel adapter is essential for liquid transfer applications crafted from high-quality 316 stainless steel for durability and corrosion resistance. Equipped with a Buna-N seal it ensures a reliable seal under various conditions. Its safety clip feature secures connections preventing accidental disconnections. With stainless steel cam levers pins rings and safety clips it provides consistent long-lasting performance. To couple slide the adapter into the coupler and press the cam levers down manually. To uncouple lift the cam arms and remove the adapter easily. Designed to meet A-A-59326 (superseding MIL-C-27487F) or DIN 2828 standards this adapter ensures compatibility with similar products. For sizes between 5 to 8 it has a pressure rating of 75 PSI.

Brand: Can Industrial Inc

Supplier Part Number: SSDC-600

MPN: C1MP37

Specifications

Brand Sunrise	Connection Size 1 6 mm	Connection Type Type DC	Connection Type 1 Type DC	Dimension Standards AA-59326, DIN 2828	Fitting Type Dust Cap	Material Stainless Steel	Material Construction 316 Stainless Steel	Maximum Operating Pressure 75 psi	Seal Material Buna-N	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Features	Seal Material
SSDC-100 Stainless Cam & Groove Cap	1	Safety Clip	Buna-N
SSDC-150 Stainless Cam & Groove Cap	1-1/2	Safety Clip	Buna-N
SSDC-200 Stainless Cam & Groove Cap	2	Safety Clip	Buna-N
SSDC-300 Stainless Cam & Groove Cap	3	Safety Clip	Buna-N
SSDC-400 Stainless Cam & Groove Cap	4	Safety Clip	Buna-N

Product Questions & Answers (2)

Question by: Diane M on Jun 11, 2025, 4:47 PM

Reckon this cap will hold up if it gets splashed with chemicals sometimes?

Answer by: Customer Support on Jun 13, 2025, 6:04 AM

Being made from 316 stainless steel, this adapter offers good corrosion resistance. The Buna-N seal will also withstand exposure to a range of chemicals, but it's best to check its compatibility with the specific chemicals you're using to ensure optimal performance and longevity.

Question by: Lance F on Jun 17, 2025, 12:38 PM

got a 6 inch camlock hookup, is this the dust cap that fits the standard stuff everybody uses?

Answer by: Customer Support on Jun 19, 2025, 8:58 AM

It is made to interchange with cam and groove products built to A-A-59326 (the standard that replaced MIL-C-27487F) or DIN 2828, so it matches other couplings made to those same standards in the 6 inch size.
