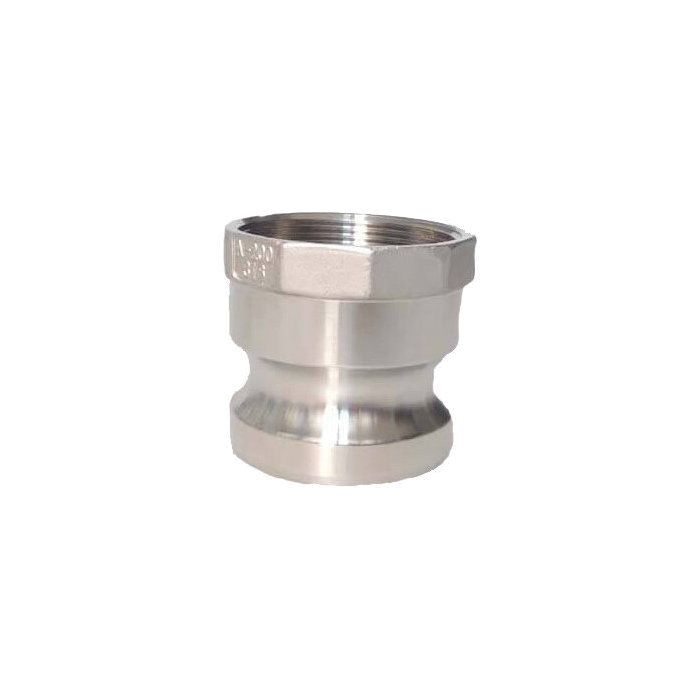

Stainless Steel Cam & Groove Adapter, Male Half, 1 Inch Female NPT

Description & Features

This Stainless Steel Cam & Groove Adapter features a male half and a 1-inch female NPT connection. Constructed from 316 stainless steel, this adapter is designed for use with liquids. Buna-N seals ensure a secure connection.

This cam and groove adapter interchanges with all products produced to standard A-A-59326 (superseding MIL-C-27487F) or DIN 2828. (Note: No standard exists for 1/2” and 8” sizes, and these sizes generally do not interchange with other manufacturers.) It operates by sliding the adapter into the coupler and pressing down the cam levers. To uncouple, lift the cam arms and remove the adapter. Female couplers include lugs for attaching safety pins.

SKU: SSA-100

Supplier Part Number (MPN): SSA-100

Alternate Part Numbers: C1NC83

Specifications

Brand Sunrise	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Male Adapter, FNPT	Connection Type 1 Male Adapter	Connection Type 2 Female NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Stainless Steel	Material Construction 316 Stainless Steel	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Price	Action
SSA-300 Stainless Cam & Groove NPT Adapter	3

Product Questions & Answers (2)

Question by: Gary J on Jul 28, 2025, 8:56 AM

Wondering if this will hook up to a standard 1" female fitting I already have?

Answer by: Customer Support on Jul 30, 2025, 8:27 AM

This adapter has a 1-inch female NPT connection, so it should connect to any standard 1" male NPT fitting.

Question by: Bonnie F on Feb 9, 2026, 8:25 AM

got a 1 inch camlock coupler already, will this male adapter swap in with the usual cam and groove stuff?

Answer by: Customer Support on Feb 10, 2026, 7:50 PM

Interchangeability is the main idea here. The adapter is made to interchange with cam and groove products built to A-A-59326 (which supersedes MIL-C-27487F) or DIN 2828, so it will mate with couplers made to those same standards.
