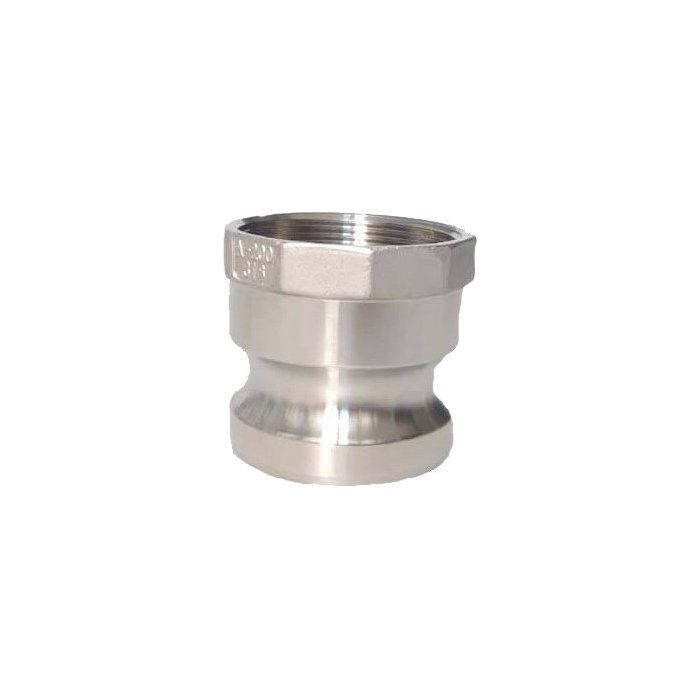

Stainless Steel Cam & Groove Adapter, Male Half, 3 Inch Female NPT

Description & Features

Designed for liquid transfer applications this 316 stainless steel camlock adapter offers reliable coupling and uncoupling. It is constructed from corrosion-resistant 316 stainless steel for the body cam levers pins rings and safety clips.

Buna-N seals ensure efficient sealing performance. The adapter is compatible with all products adhering to A-A-59326 or DIN 2828 standards with the exception of sizes 1/2" and 8.

Pressure ratings are set at 150 PSI for sizes 1/2 to 4 and 75 PSI for sizes 5 to 8.

For coupling slide the adapter into the coupler and press the cam levers down by hand. Uncoupling involves lifting the cam arms and removing the adapter. Female couplers featuring safety pins prevent accidental disconnection.

MPN: C1NC84

Supplier Part Number: SSA-300

Specifications

Brand Sunrise	Connection Size 1 3 in	Connection Size 2 3 in	Connection Type Male Adapter, FNPT	Connection Type 1 Male Adapter	Connection Type 2 Female NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Stainless Steel	Material Construction 316 Stainless Steel	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Price	Action
SSA-100 Stainless Cam & Groove NPT Adapter	1

Product Questions & Answers (2)

Question by: Wayne W on Jan 7, 2026, 2:47 PM

got a 3 inch camlock setup already. will this male half swap in with other brands or is it picky

Answer by: Customer Support on Jan 9, 2026, 1:19 PM

Interchangeability is based on the cam and groove standard, not the brand name. This adapter will interchange with other cam and groove products made to A-A-59326 or DIN 2828 standards, and 3 inch falls in the sizes that follow those standards.

Question by: Danny R on Jun 20, 2025, 7:48 AM

all the cam levers, pins, and clips, are those stainless too, or just the body?

Answer by: Customer Support on Jun 21, 2025, 2:25 PM

Every metal component on this fitting is 316 stainless steel. That covers the body, cam levers, pins, rings, and safety clips. The only non-stainless part is the Buna-N seal, which handles the actual sealing work.
