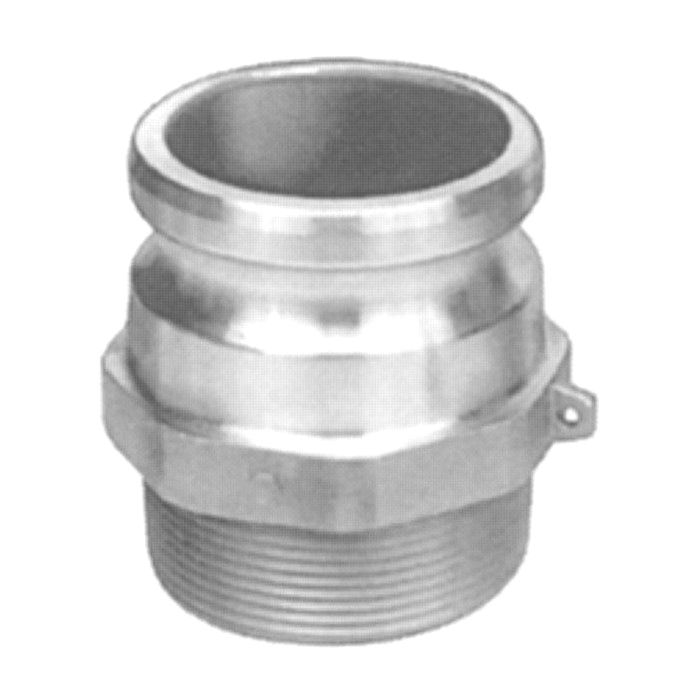

Stainless Steel Cam & Groove Adapter, Male Half, 1 Inch Male NPT

Description & Features

The high-grade 316 stainless steel construction of this adapter ensures longevity and compatibility with liquid applications in demanding environments. Stainless steel cam levers pins rings and safety clips enhance the durability of the fitting.

Designed for efficient coupling and uncoupling slide the adapter into the coupler and press down the cam levers. To release lift the cam arms and remove the adapter. Safety pins can be used with female couplers featuring cast-in lugs for added security.

Interchangeable with products built to standard A-A-59326 this adapter operates at a pressure rating of 150 PSI for sizes 1/2" - 4" and 75 PSI for sizes 5" to 8". Note: This fitting is not intended for use with compressed air or steam services.

MPN: SSF-100

Supplier Part Number: SSF-100

Specifications

Brand Sunrise	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Male Adapter, MNPT	Connection Type 1 Male Adapter	Connection Type 2 Male NPT	Dimension Standards AA-59326, DIN 2828	Fitting Type Adapter	Material Stainless Steel	Material Construction 316 Stainless Steel	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Price	Action
SSF-200 Stainless Cam & Groove NPT Adapter	2

Product Questions & Answers (3)

Question by: Connie C on May 19, 2025, 7:32 AM

what's the pressure rating on this thing for a 1 inch line, and is it safe to run compressed air through it?

Answer by: Customer Support on May 20, 2025, 1:36 PM

For the 1 inch size, you're working with a 150 PSI rating, same as anything else in the half-inch through 4 inch range. That said, compressed air is a hard no with these cam and groove couplings. Steam's off the table too. These are built strictly for liquid service, so keep that in mind before putting one in a pneumatic line.

Question by: Melvin G on Sep 27, 2025, 1:08 PM

Reckon this adapter will hold up to some decent use with chemicals?

Answer by: Customer Support on Sep 28, 2025, 6:46 PM

The 316 stainless steel should work well with a variety of liquids and hold up in demanding environments.

Question by: Jerry H on Feb 17, 2026, 5:09 PM

got a 1 inch male NPT port on my pump, is this the right camlock piece to screw in there?

Answer by: Customer Support on Feb 19, 2026, 1:00 PM

For a 1 inch male NPT threaded connection, this adapter matches that size and thread style. It is the male half cam and groove adapter with a 1 inch male NPT end.
