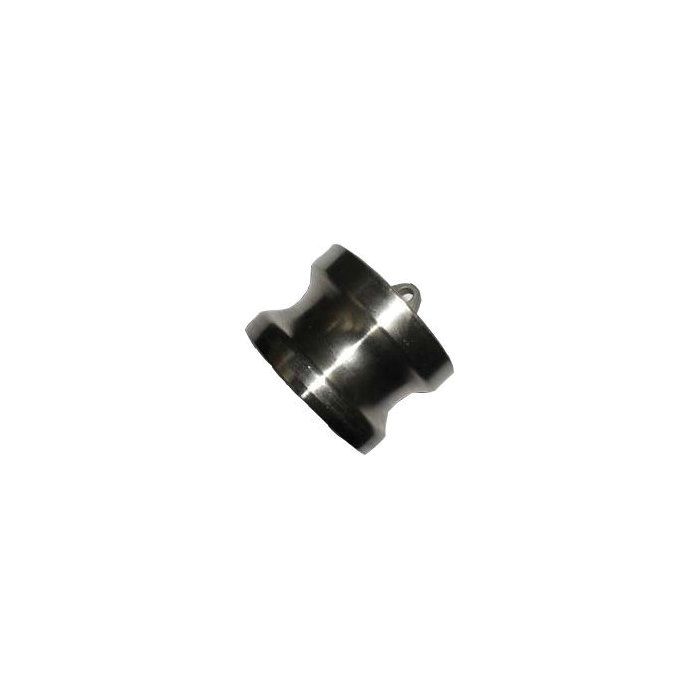

Stainless Steel Cam & Groove Adapter, 1-1/2 Inch Dust Plug

Description & Features

The Cam & Groove Stainless Steel industrial hose fittings are crafted from high-grade 316 stainless steel ensuring durability and robust performance. This 1-1/2 Inch Dust Plug is precision-engineered for liquid applications providing secure and dependable connections.

Its designed for ease of use; the adapter slides into the coupler and cam levers secure it with normal hand pressure. Stainless steel cam levers pins rings and safety clips enhance reliability while Buna-N seals ensure a tight leak-free fit.

Interchangeability is guaranteed with products produced to A-A-59326 standards. Female couplers feature cast-in lugs for safety pins preventing unintended uncoupling. Pressure ratings are 150 PSI for sizes up to 4 inches and 75 PSI for larger sizes. Fitting attachment suggestions can be found in the hose section of this catalog.

MPN: C1MP40

Supplier Part Number: SSDP-150

Specifications

Brand Sunrise	Connection Size 1 1-1/2 in	Connection Type Type DP	Connection Type 1 Type DP	Dimension Standards AA-59326, DIN 2828	Fitting Type Dust Plug	Material Stainless Steel	Material Construction 316 Stainless Steel	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Price	Action
SSDP-100 Stainless Cam & Groove Plug	1
SSDP-200 Stainless Cam & Groove Plug	2
SSDP-400 Stainless Cam & Groove Plug	4

Product Questions & Answers (3)

Question by: Troy M on Jul 27, 2025, 4:11 PM

trying to cap off a 1-1/2 camlock line when it’s not hooked up, is this the right piece for that

Answer by: Customer Support on Jul 29, 2025, 8:04 AM

For keeping a 1-1/2 inch cam and groove connection closed off when it is not in use, this is the dust plug style. It is a 316 stainless body with a Buna-N seal, and it is intended for liquid service.

Question by: Tony S on Nov 12, 2025, 10:57 AM

does this plug work with standard camlock couplers from other brands, or is it only gonna fit HSC stuff?

Answer by: Customer Support on Nov 14, 2025, 8:52 AM

Any camlock fitting built to the A-A-59326 standard will mate up with this plug, so you're not locked into one brand. That standard replaced the old MIL-C-27487F spec and also covers DIN 2828, which means most industrial camlocks you'll run across in the field should be compatible. The 1-1/2 inch size falls right in the middle of the range where interchangeability is well established, so swapping between manufacturers at that size is generally a non-issue.

Question by: Terry J on Oct 2, 2025, 12:56 PM

Will this plug keep water and stuff out of my hose when I ain't usin' it?

Answer by: Customer Support on Oct 4, 2025, 11:54 AM

Absolutely, this dust plug is precision-engineered for liquid applications. The Buna-N seals ensure a tight, leak-free fit.
