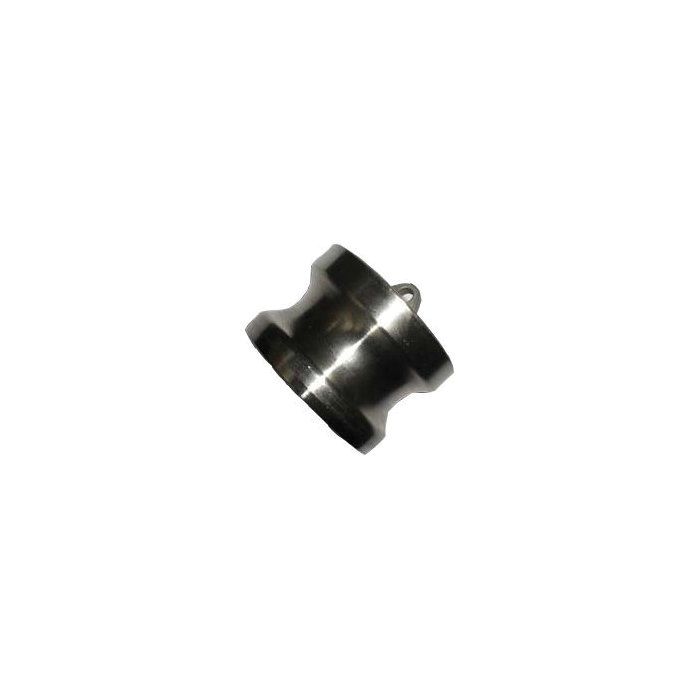

Stainless Steel Cam & Groove Adapter, 2 Inch Dust Plug

Description & Features

Crafted from robust 316 stainless steel this cam & groove adapter is designed to ensure secure and reliable connections in liquid-specific applications. The unit features stainless steel cam levers pins rings and safety clips for enhanced durability and performance. The Buna-N seals contribute to superior leak resistance making this adapter well-suited for demanding industrial environments. The coupling mechanism allows for straightforward attachment and detachment ensuring user convenience. Designed in conformity with standard A-A-59326 it guarantees compatibility with products from various manufacturers. This adapter is not suitable for use with compressed air or steam. **MPN:** C1MP41 **Supplier Part Number:** SSDP-200

Specifications

Brand Sunrise	Connection Size 1 2 in	Connection Type Type DP	Connection Type 1 Type DP	Dimension Standards AA-59326, DIN 2828	Fitting Type Dust Plug	Material Stainless Steel	Material Construction 316 Stainless Steel	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Price	Action
SSDP-100 Stainless Cam & Groove Plug	1
SSDP-150 Stainless Cam & Groove Plug	1-1/2
SSDP-400 Stainless Cam & Groove Plug	4

Product Questions & Answers (2)

Question by: Donna A on May 19, 2025, 9:51 PM

Can this plug be used on a compressed air line, or is it strictly for liquid service?

Answer by: Customer Support on May 21, 2025, 7:48 PM

Liquid service only on this one. Cam and groove couplings in this product line are not rated for compressed air or steam under any circumstances. Stick to liquid applications and you'll be fine.

Question by: Sherry R on Jun 7, 2025, 6:57 AM

got a 2 inch camlock setup already. is this dust plug gonna interchange with other brands or am i asking for trouble

Answer by: Customer Support on Jun 8, 2025, 5:51 PM

Built to the A-A-59326 standard, it will interchange with other cam and groove products made to that same standard, and it also notes interchangeability with DIN 2828. Since it is a 2 inch size, it falls in the range that has a standard and is expected to interchange.
